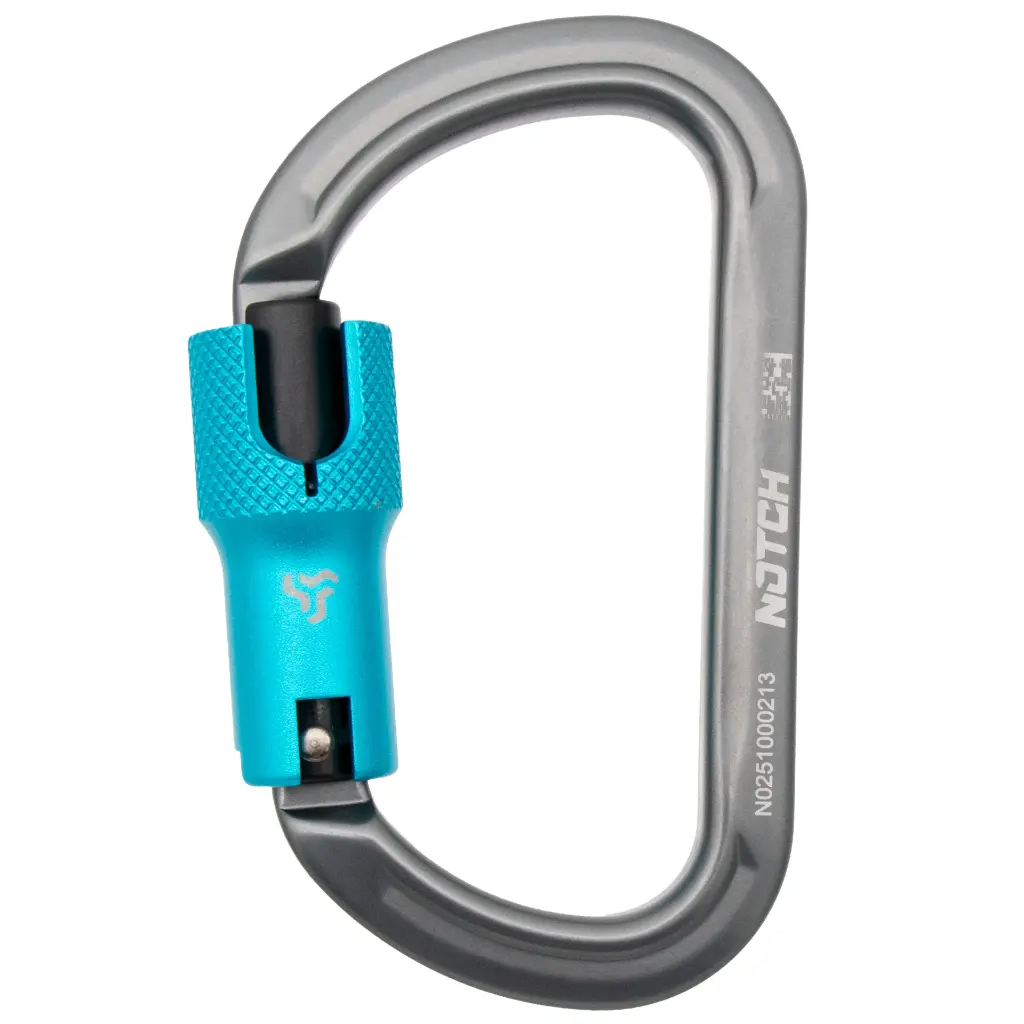

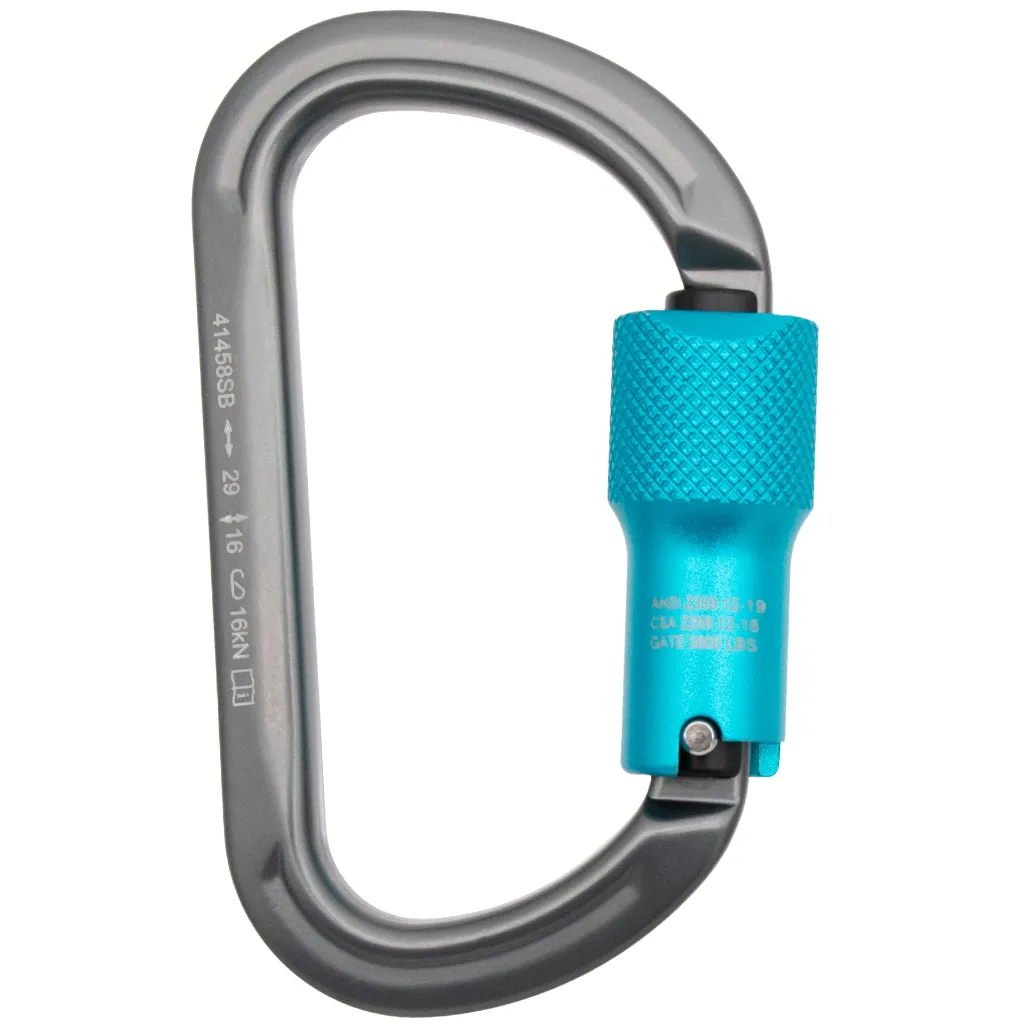

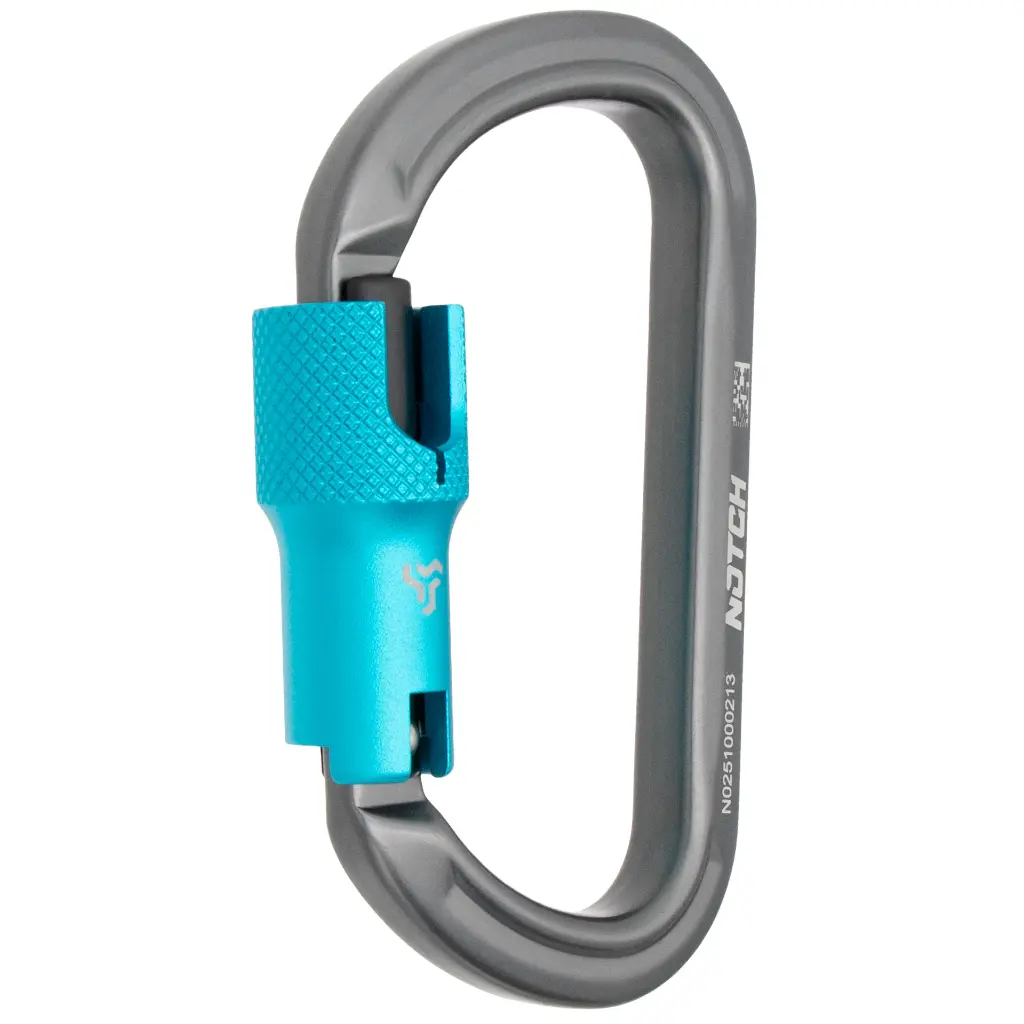

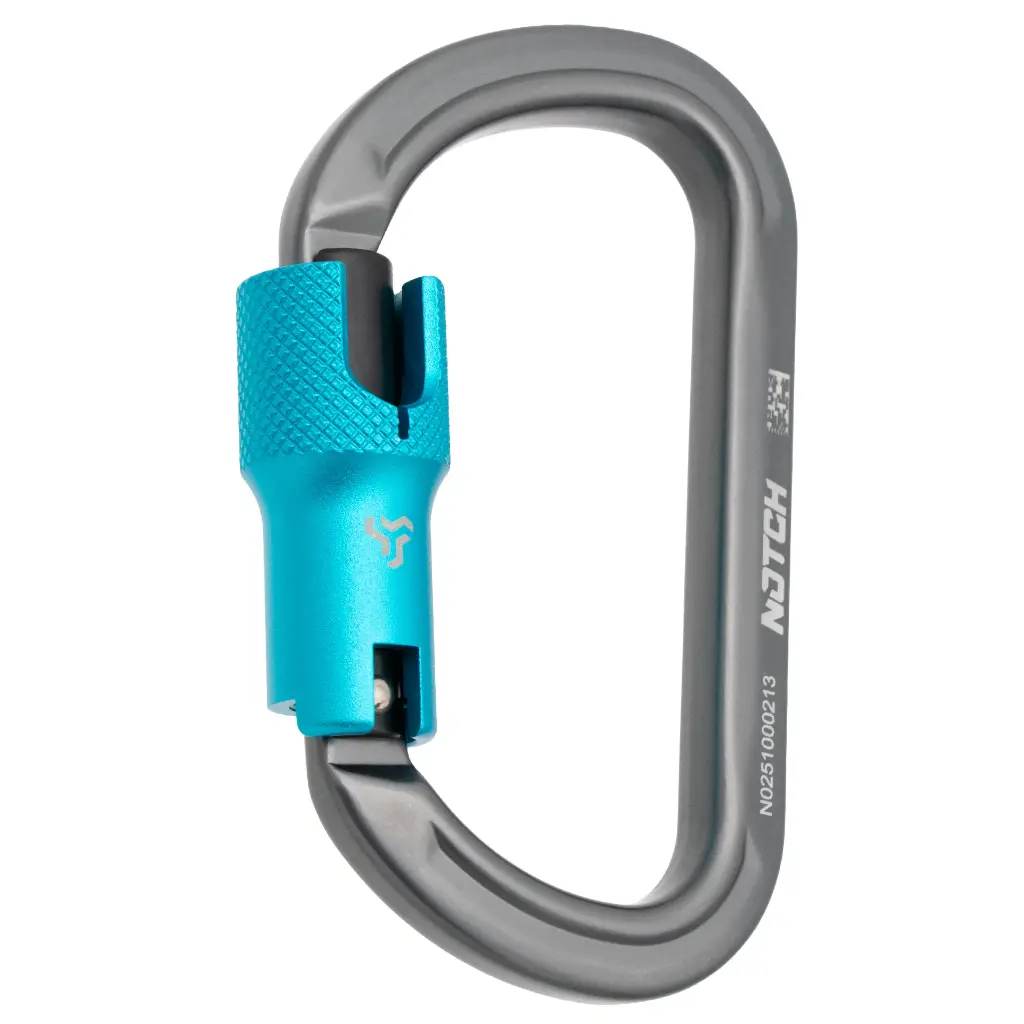

Notch Offset Oval 3600 lb ANSI Gate Aluminum Carabiner

The Notch Offset Oval 3600 lb ANSI Gate Aluminum Carabiner is a professional double-locking connector designed for arborist, climbing, work-at-height, technical rescue, and industrial applications requiring an ANSI-rated gate.

The offset oval profile provides a balanced working area for ropes, pulleys, lanyards, and other compatible hardware while helping maintain efficient loading along the major axis. Its aluminum construction provides high strength while keeping weight substantially lower than comparable steel connectors.

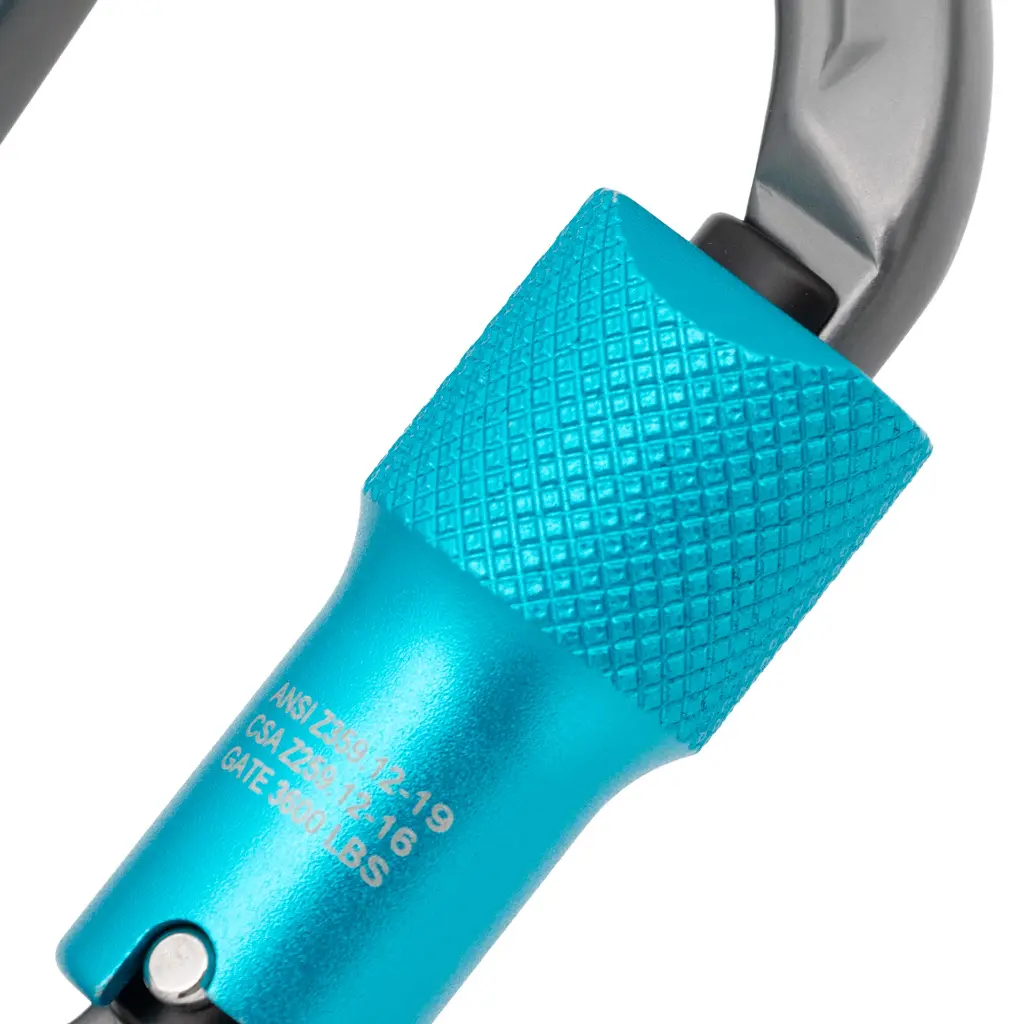

A triple-action, double-locking gate helps prevent unintended opening and provides a 3,600 lb / 16 kN gate rating. The connector meets ANSI Z359.12-2019 and CSA Z259.12-16 requirements for professional fall-protection and work-at-height applications.

The carabiner is rated to 29 kN on the major axis and 16 kN on the minor axis. The contrasting blue locking sleeve provides clear visual identification of the gate mechanism.

Manufacturer: Notch Equipment

Product: Offset Oval 3600 lb ANSI Gate Aluminum Carabiner

Manufacturer Part Number / SKU: 41458SB

Material: Aluminum

Shape: Offset Oval

Gate: Triple-Action, Double-Locking

Major Axis Strength: 29 kN

Minor Axis Strength: 16 kN

Gate Strength: 16 kN / 3,600 lb

Sold individually.

Specifications and Certifications
