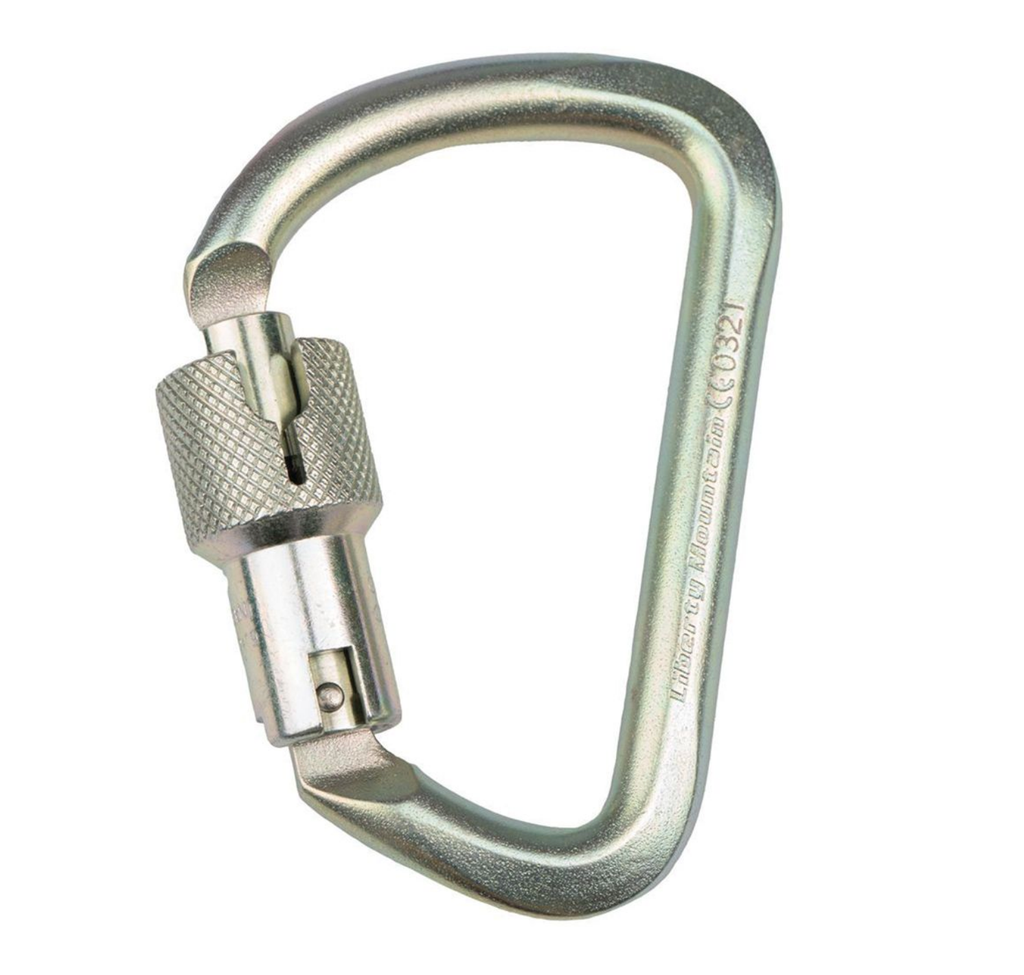

Cypher G Series Large D Triple-Lock ANSI Steel Carabiner
The Cypher G Series Large D Triple-Lock ANSI is a heavy-duty steel carabiner designed for professional fall protection, rope access, rescue, industrial, and work-at-height applications. Its large D-shaped body provides a high-strength connection while concentrating the load along the major axis, and the keylock nose provides smooth, snag-resistant clipping and removal.
The triple-action automatic locking gate provides additional security by requiring three distinct movements to open. The Triple Lock configuration meets ANSI Z359 gate-strength requirements and provides a 16 kN gate strength.
The zinc-plated steel construction provides corrosion resistance and durability for demanding professional environments. A wide 25 mm (0.98 in.) gate opening accommodates a broad range of anchor points and provides easier operation while wearing work gloves.
Manufacturer: Cypher
Model: G Series Large D Triple Lock ANSI
Manufacturer Part Number: S50-2310T
SKU: 499052
UPC: 000194028552
Gate: Triple-action automatic locking
Gate Opening: 25 mm / 0.98 in.
Material: Steel
Finish: Yellow zinc plated
Weight: 302 g / 10.7 oz.
Major-Axis Strength: 53 kN
Gate Strength: 16 kN
Sold individually.
Performance Ratings and Certifications
| Standard / Specification | Rating |
|---|---|
| Major-Axis Strength | 53 kN |
| Gate Strength | 16 kN |
| ANSI Z359.1-2007 | Certified |
| ANSI Z359.12-2009 | Certified |
| EN 362 | CE Certified |
| EN 12275 | CE Certified |
| Gate Opening | 25 mm / 0.98 in. |
| Locking Mechanism | Triple Lock / 3AL |
