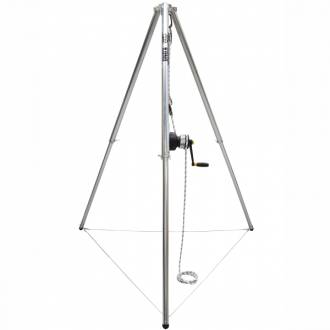

KONG TRIPODE MONO Industrial Tripod | 1 Winch, 160–200 cm
The KONG TRIPODE MONO is a tripod with one winch for industrial work in sewers, confined spaces and buildings, using static or dynamic textile rope. KONG designed it to be easier and more flexible than steel-cable systems.
It is built from aluminum alloy tubes with stainless steel screws; the winch uses bronze and stainless components with a hard-anodized aluminum drum. It weighs about 20 kg with fittings and carries on your back in a PVC bag (130 x 45 x 30 cm).
Features and Benefits

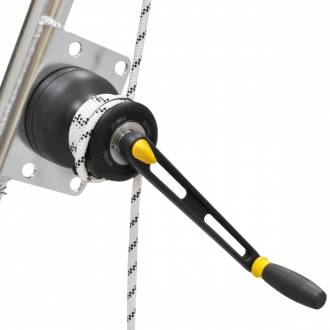

Integrated winch for textile rope

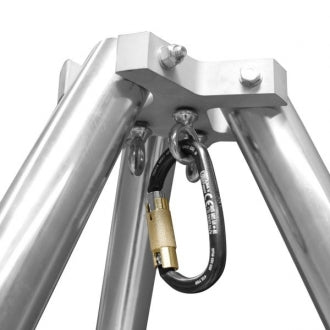

Anchor rated for up to 3 users at once (EN 795 / CEN/TS 16415 type B)
Lifting system tested to EN 1496 class B up to 150 kg
Telescopic legs, 3 positions, 160–200 cm, with anti-slip feet
Includes 3 carbon steel autoblock connectors, 1 alloy pulley, 1 BACK-UP and a carry bag
Made in Italy
Technical Specifications
Specification | Details |
|---|---|
Manufacturer | KONG |
Material | Aluminum alloy, stainless steel; bronze/stainless winch |
Height | 160–200 cm (3 positions) |
Weight | Approx. 20 kg with fittings |
Packed Size | 130 x 45 x 30 cm |
Maximum Lifting Load | 150 kg (EN 1496/B) |
Country of Manufacture | Italy |
Certifications and Standards
EN 1496/B
EN 795/B (up to 3 users)
CEN/TS 16415/B
Available Variants
Variant | Manufacturer SKU |
|---|---|
Standard | 842010000KK |
