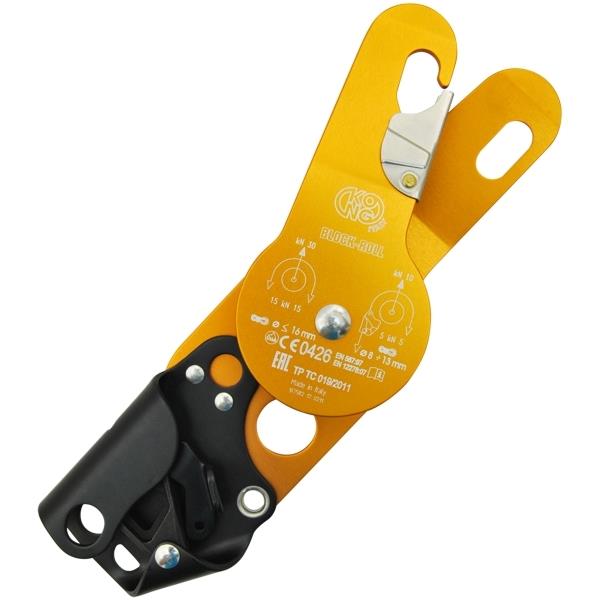

KONG BLOCK ROLL Pulley with Integrated Rope Clamp | 13 mm, 28 kN
The KONG BLOCK ROLL is a single pulley with mobile side plates, a low-friction ball bearing and an integrated rope clamp, built for climbing and rescue. It is suited to hauling materials on a wall and to building single and double hoists for rescue and self-rescue.
It takes ropes up to 13 mm. The rope clamp is tested to point 4.2.1 of EN 567:13.
Features and Benefits
Integrated rope clamp for progress capture
Mobile side plates
Low-friction ball bearing
For single and double hoists in rescue and self-rescue
Made in Italy
Technical Specifications
Specification | Details |
|---|---|
Manufacturer | KONG |
Material | Aluminum alloy (body and sheave) |
Breaking Load | 28 kN |
Weight | 550 g |
Main Dimension | 280 mm |
Maximum Rope Diameter | 13 mm |
Bearing | Ball bearing |
Country of Manufacture | Italy |
Certifications and Standards
EN 12278 (pulleys)
Rope clamp tested to EN 567:13 pt. 4.2.1
UIAA
Available Variants
Variant | Manufacturer SKU |
|---|---|
Standard | 81800NO00KK |
