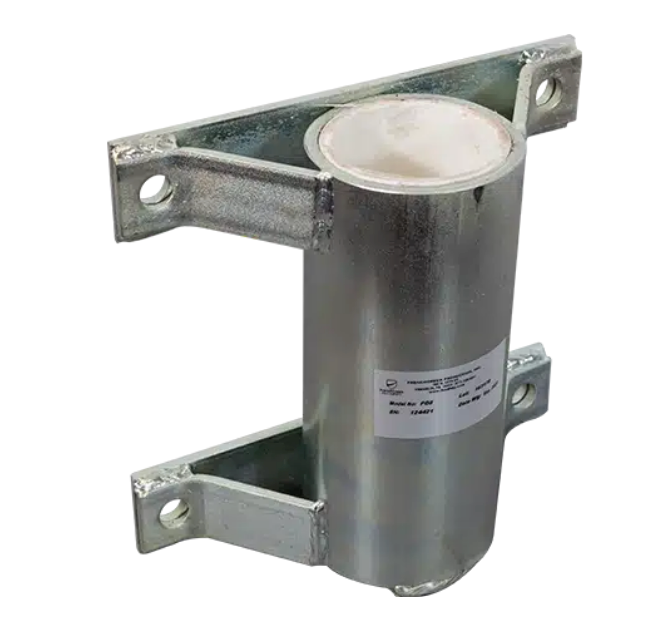

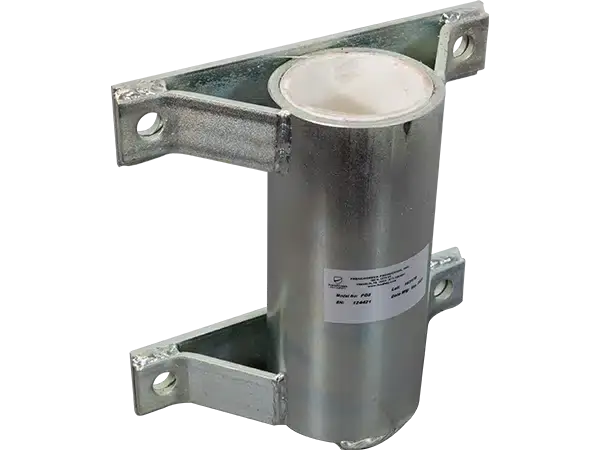

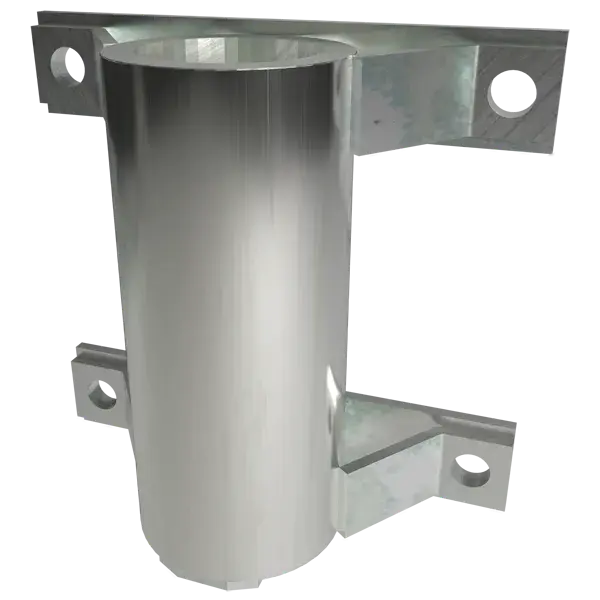

FrenchCreek PD8 Wall Mount Sleeve Davit Base

Wall-mount sleeve base for FrenchCreek's portable davit system, which raises, lowers, and suspends personnel in confined spaces. It's used for routine work or for rescues in vertical confined spaces such as vaults, manholes, and pump stations. The base bolts onto existing steel and concrete walls and structures, making it well suited to locations accessed repeatedly. It has a 9" deep sleeve with a PVC insert, is compatible with the PD1 davit mast assembly, and is available for quick ship.

Specifications

• Type: Wall-mount sleeve davit base
• Installation: Bolts onto existing steel and concrete structures; user-supplied fasteners required
• Sleeve: 9" deep with PVC insert
• Dimensions: 10" x 4.25" x 9.5"

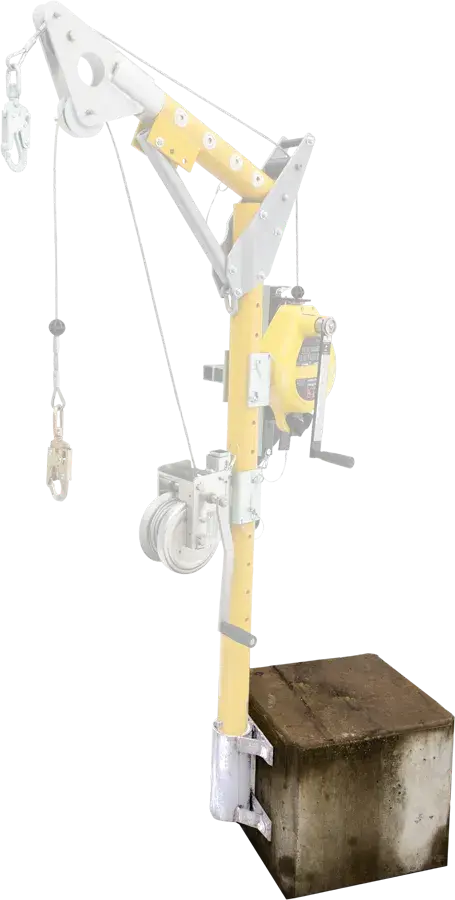

• Compatible with: PD1 davit mast assembly
• Weight capacity: 450 lbs (205 kg) at a minimum 2:1 safety factor
• Hardware material: Zinc-plated carbon steel, PVC insert
• Weight: 32 lbs
• Availability: Quick Ship
• Standards: OSHA 1926.502 and 1910.66 when used in a complete system
