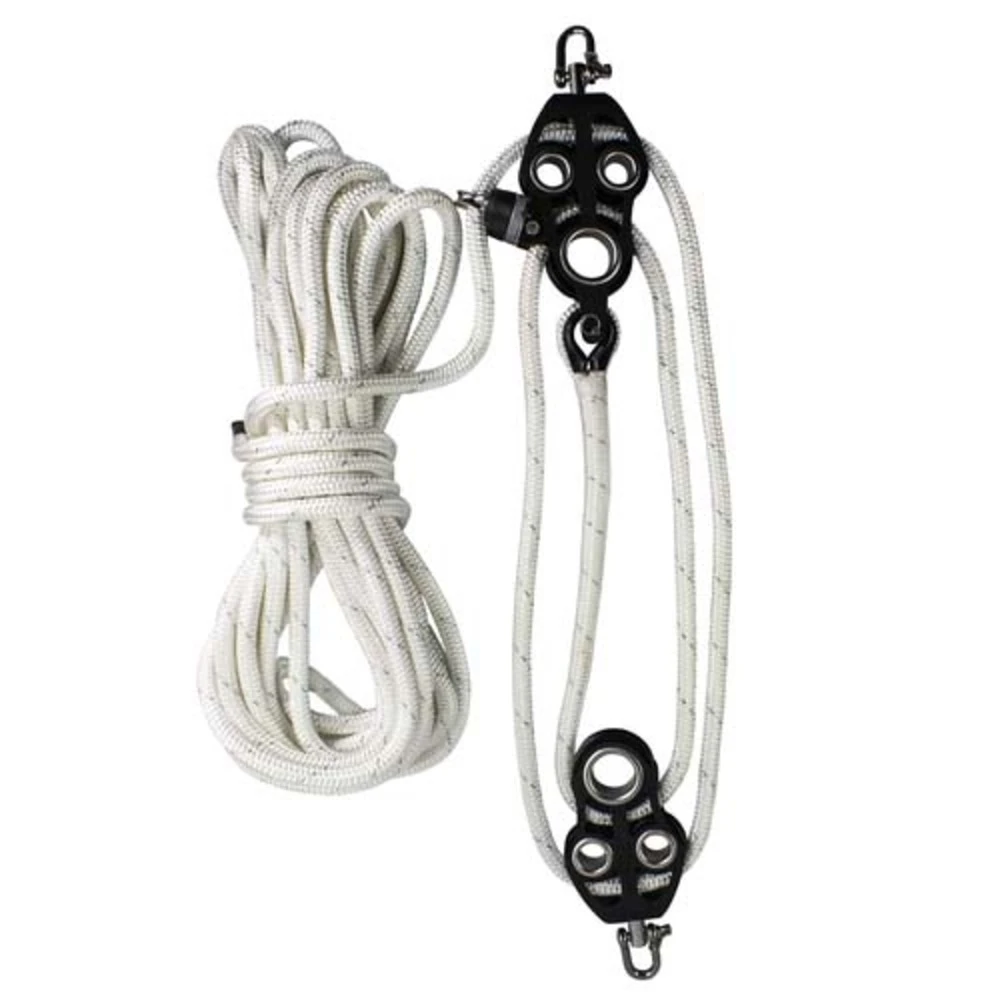

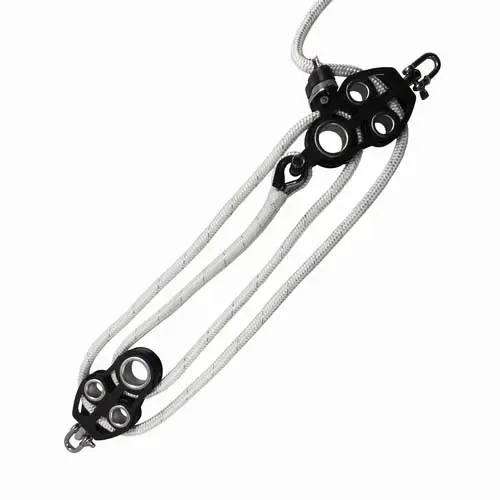

US Rigging Large Fiddle Block Set, 50 ft
The US Rigging Large Fiddle Block Set is a professional rigging system featuring two unibody blocks and 50 feet of 1/2-inch double-braided rope. Designed for hauling, tensioning, and controlled load management, this system provides a practical solution for professional arborists and tree-care crews.
The set features two unibody blocks designed to accommodate sheaves up to 2-5/8 inches in diameter and shackles up to 5/16 inch. Swiveling shackles at the top of the blocks allow for convenient installation into compatible rigging systems.
One block incorporates a cleat for additional rope control during hauling and tensioning operations.
The 50-foot rope configuration provides a compact option for arborist rigging applications where longer rope systems are unnecessary.
Key Features
Complete large fiddle block set with 50 feet of rope.
Includes two unibody rigging blocks.
Supplied with 1/2-inch double-braided rope.
Block design accommodates sheaves up to 2-5/8 inches in diameter.
Accommodates shackles up to 5/16 inch.

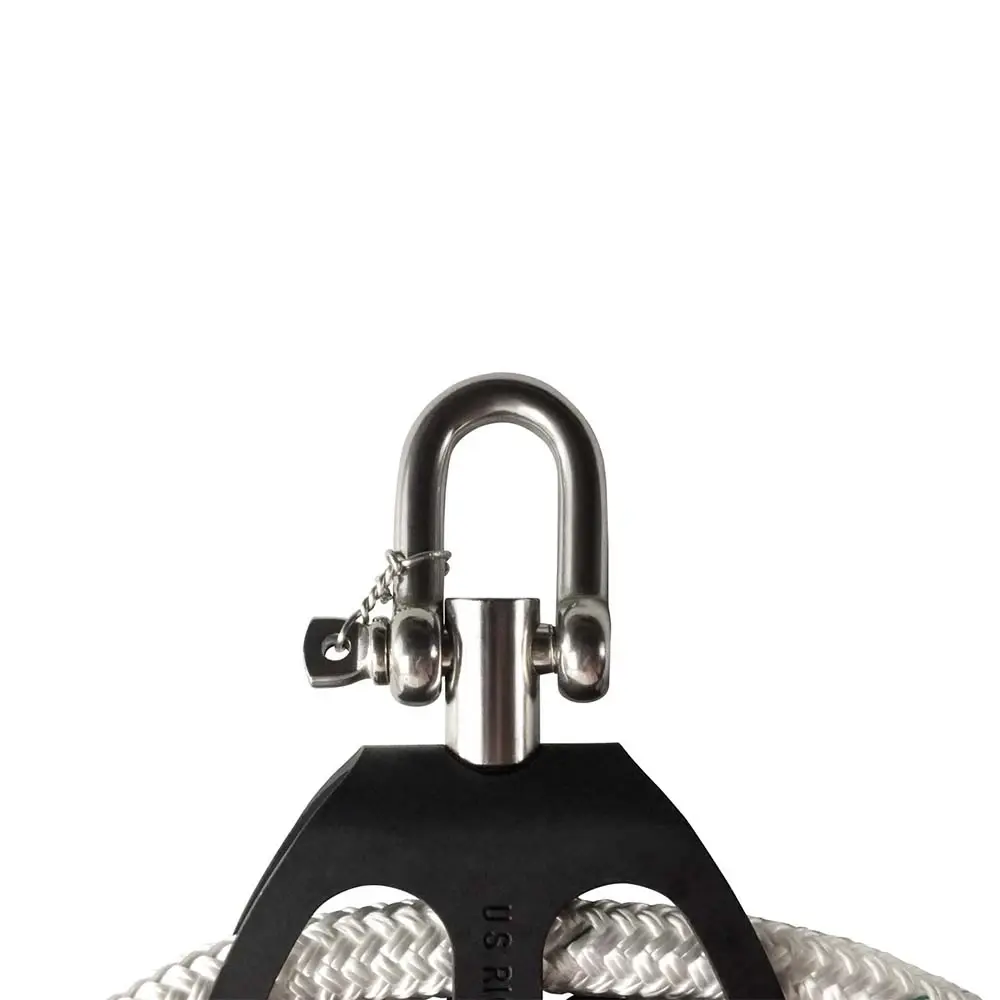

Swiveling shackles for convenient installation into compatible rigging systems.

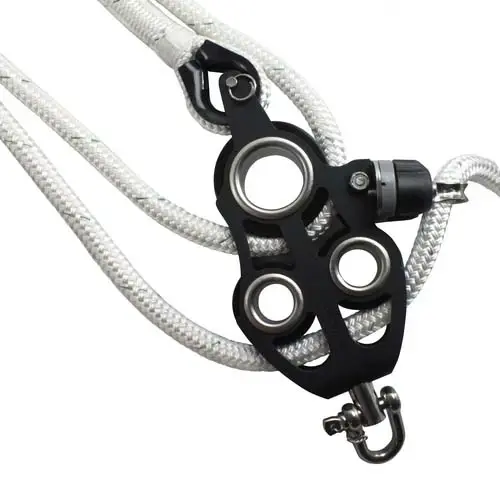

Integrated cleat on one block for additional rope control.
Designed for professional rigging, hauling, and tensioning applications.
Technical Specifications
Specification | Details |
|---|---|
Brand | US Rigging |
Manufacturer Part Number | 50126 |
Product Type | Large Fiddle Block Set |
Rope Length | 50 ft |
Rope Diameter | 1/2 in. |
Rope Construction | Double-Braided |
Block Configuration | Two Unibody Blocks |
Maximum Supported Sheave Diameter | 2-5/8 in. |
Supported Shackle Size | Up to 5/16 in. |
Connection Type | Swiveling Shackles |
Rope Control | Integrated Cleat on One Block |
Primary Application | Rigging, Hauling, and Tensioning |
Included Components
2 US Rigging Unibody Fiddle Blocks
50 ft of 1/2-inch Double-Braided Rope
Swiveling Shackles
Integrated Rope Cleat on One Block
Important Safety Information
Use only with compatible, appropriately rated rigging equipment and in accordance with the manufacturer's instructions.
Inspect the rope, blocks, shackles, cleat, and associated components before each use.
The manufacturer's complete-system working load limit and approved personnel-lifting applications have not been established from the available product information. Do not use the system for personnel lifting or life-support applications unless expressly approved by the manufacturer.
