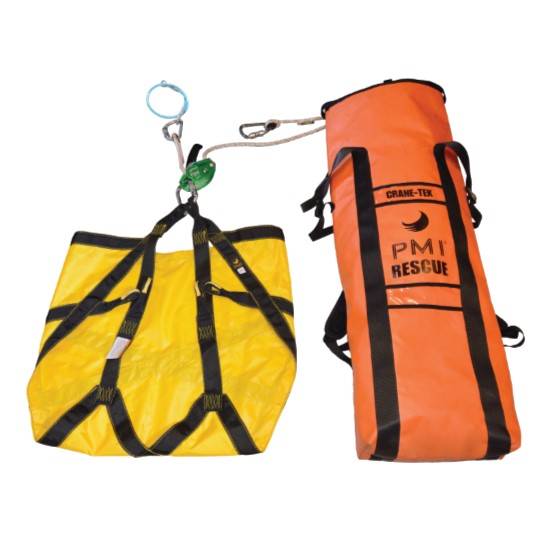

PMI® Crane-Tek Rescue Solution
The PMI® Crane-Tek Rescue Solution is a complete emergency-descent system designed for personnel working at height—such as crane operators—who may not normally be wearing a climbing or fall-arrest harness. In an emergency, the included PMI Hasty X Evacuation Seat and preconfigured rope system provide the equipment needed to perform a controlled self-evacuation.
At the center of the system is the PMI D4 Descender by ISC. Its double-action safety mechanism automatically stops descent if the operator releases the control handle or pulls it too far during a panic response. Once the panic lock engages, the user can reset the handle to the lowering position and resume a controlled descent.
Available with three rope-length options, the Crane-Tek can be selected according to the height and rescue requirements of the worksite. All essential components are packed in an included carrying bag for organized storage and rapid access.
Key Features
- Complete emergency-evacuation system for workers at height
- Suitable for crane, tower, utility, and industrial applications
- Designed for personnel who may not already be wearing a harness
- Supports controlled emergency descent
- PMI Hasty X provides a rapidly deployable evacuation seat
- D4 Descender incorporates automatic and panic-braking functions
- Wire-rope sling provides a durable anchoring component
- Available with 25 m, 66 m, or 100 m of rope
- Supplied with helmet, connectors, and carrying bag
- Compact kit keeps rescue equipment organized and ready for deployment
- Standards: ANSI Z359.4; EN 12841 Type C; NFPA 1983
Kit Includes
- 11 mm PMI® Extreme Pro rope
- One 1 m PMI® wire-rope sling
- One PMI® D4 Descender by ISC
- One PMI® Advantage Helmet
- One PMI® Hasty X Evacuation Seat
- Two SMC FP Lite alloy carabiners
- One SMC ANSI Safety Lock carabiner
- One carrying bag
Rope-Length Options
| Model Number | Rope Length |
|---|---|
| KT36176 | 25 m (82 ft) |
| KT36166 | 66 m (approximately 216.5 ft) |
| KT36174 | 100 m (approximately 328 ft) |
Technical Specifications
- Brand: PMI
- Product: Crane-Tek Rescue Solution
- System Type: Emergency self-evacuation and controlled-descent kit
- Rope: 11 mm PMI Extreme Pro
- Available Lengths: 25 m, 66 m, and 100 m
- Primary Descent Device: PMI D4 by ISC
- Emergency Harness: PMI Hasty X Evacuation Seat
- Anchor Component: 1 m PMI wire-rope sling
- Primary Applications: Cranes, towers, utilities, construction, and industrial work at height
- Storage: Carrying bag included
Safety Notice: This kit contains specialized life-safety equipment intended for emergency use by properly trained personnel. Training and hands-on practice are strongly recommended before deployment. Employers must establish a site-specific evacuation and rescue plan, select a suitable anchor, inspect every component before use, and follow PMI’s current instructions and applicable workplace-safety requirements.
California Proposition 65 Warning: Cancer and reproductive harm — www.P65Warnings.ca.gov.
-
