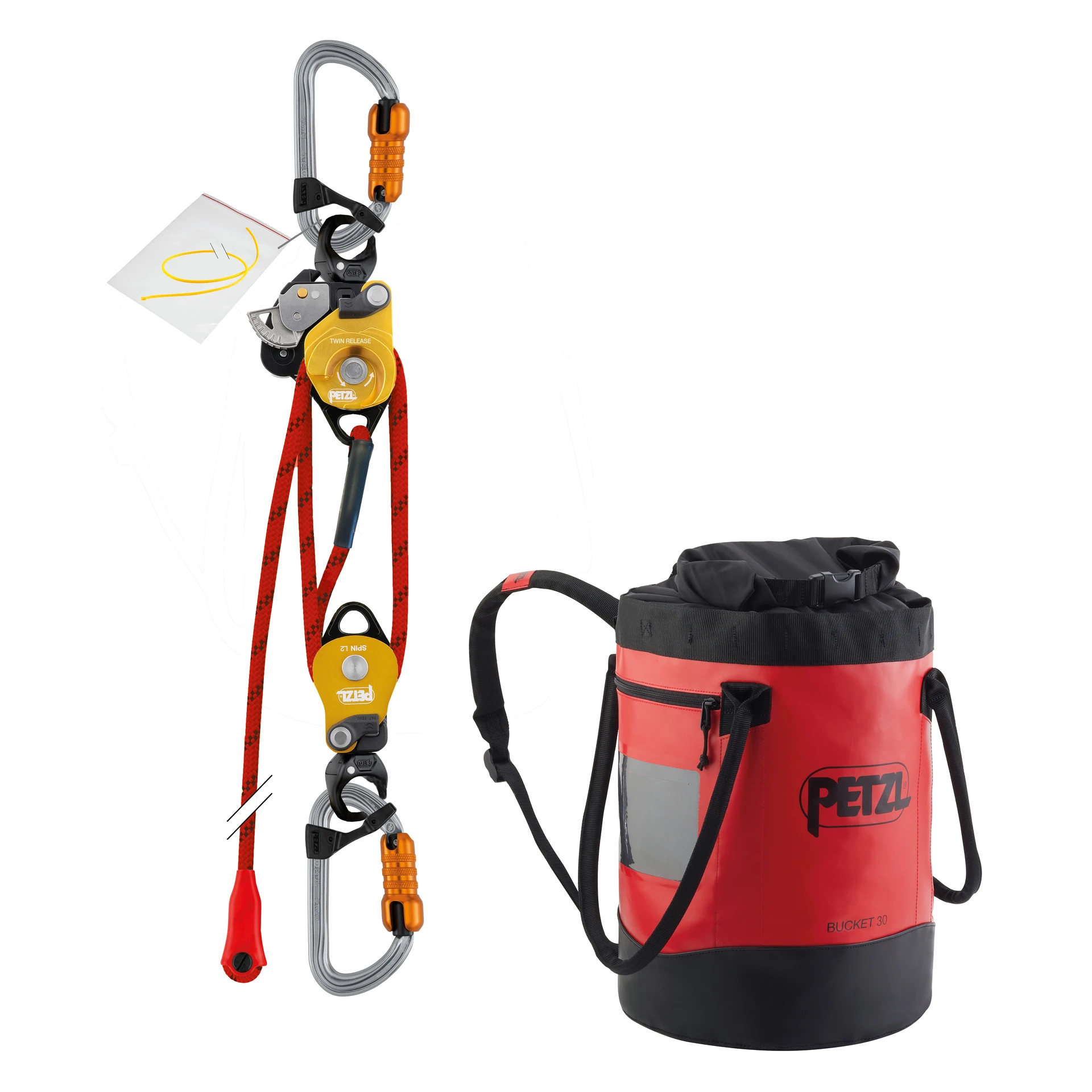

Petzl TWIN RELEASE SYSTEM
The Petzl TWIN RELEASE SYSTEM is a pre-assembled, ready-to-use hauling and lowering system designed for vertical access and rescue in industrial environments. Built for attachment to a tripod or fixed overhead anchor, it is particularly well suited for confined-space rescue and other operations requiring controlled raising and lowering of personnel or loads.
The system provides a 4:1 mechanical advantage, reducing the effort required to manage loads up to 280 kg (approximately 620 lb). The TWIN RELEASE progress-capture pulley is releasable under load and incorporates an auxiliary brake for additional control during lowering. Its toothless cam helps preserve the rope and provides a smooth transition between hauling and lowering operations.
Delivered fully assembled in a 30-liter Petzl BUCKET bag, the system provides a maximum working height of 15 m (approximately 50 ft). It can also be used to tilt or orient a rescue litter and to tension a tripod, making it a versatile system for confined-space, industrial rescue, and technical rescue teams.
Key Features
- Pre-assembled hauling and lowering rescue system
- 4:1 mechanical advantage
- Maximum load: 280 kg (approximately 620 lb)
- Maximum working height: 15 m (approximately 50 ft)
- Releasable under load
- Auxiliary brake provides additional lowering control
- Toothless cam helps preserve the rope
- Smooth transition between hauling and lowering
- Cam can be locked open for easier slack feeding
- Can be used to tilt and orient a rescue litter
- Can be used to tension a tripod
- Remote-control cord included
- System efficiency: 66%
- One-sheave efficiency: 89%
- Materials: Aluminum, stainless steel, nylon, and polyester
- Petzl Reference: P001EA00
- Three-year manufacturer guarantee
- Standards/Compliance: ANSI Z359.4 Synthetic Rope Tackle Block
System Includes
- 1 Petzl TWIN RELEASE releasable double progress-capture pulley
- 1 Petzl SPIN L2 double pulley
- 1 Petzl AXIS 11 mm, 60 m rope with two sewn terminations
- 2 Petzl Bm'D carabiners with CAPTIV positioning bars
- 1 three-meter remote-control cord
- 1 Petzl BUCKET 30 red gear bag
