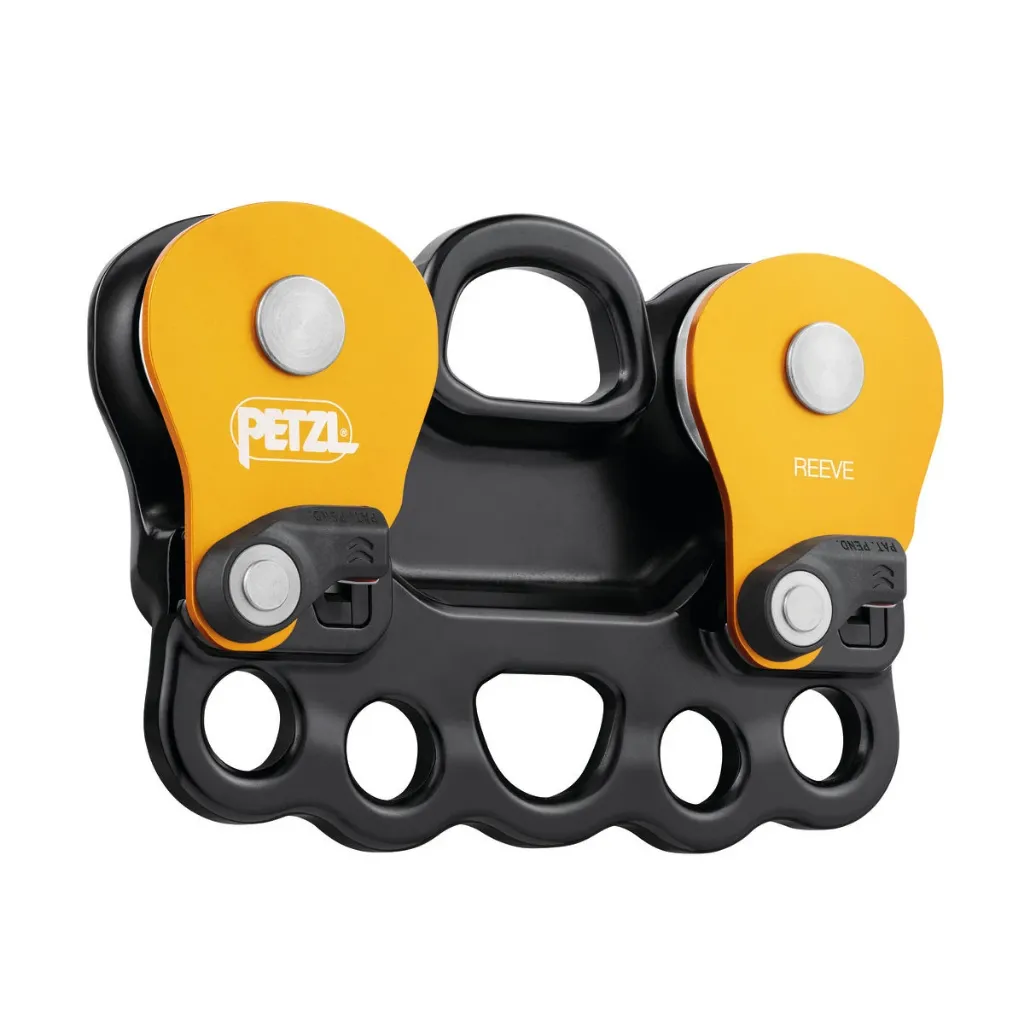

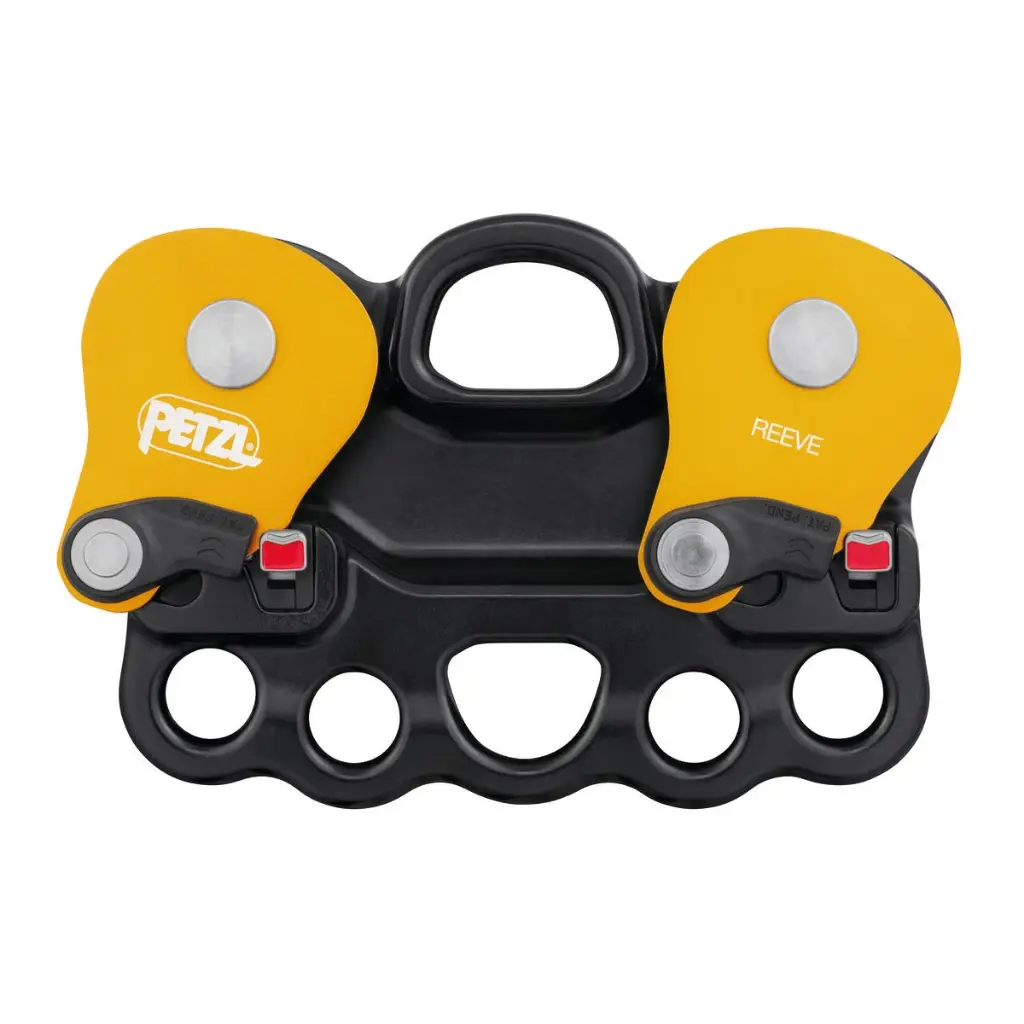

Petzl REEVE Highline Pulley

The Petzl REEVE is an integrated highline pulley designed for technical rescue systems where efficient movement, organized rigging, and multiple attachment points are required. By combining two pulleys with a rigging plate into a single unit, the REEVE provides a streamlined solution for constructing highlines and helps reduce the number of separate connectors required in the system.

The two large-diameter sheaves are mounted on sealed ball bearings for excellent efficiency and are designed to accommodate ropes up to 13 mm in diameter. The pulleys can be opened individually, allowing rope installation while the REEVE remains connected to the system. The integrated rigging plate provides multiple attachment holes for organizing connectors and rigging components and includes a large central attachment point capable of accommodating multiple connectors.

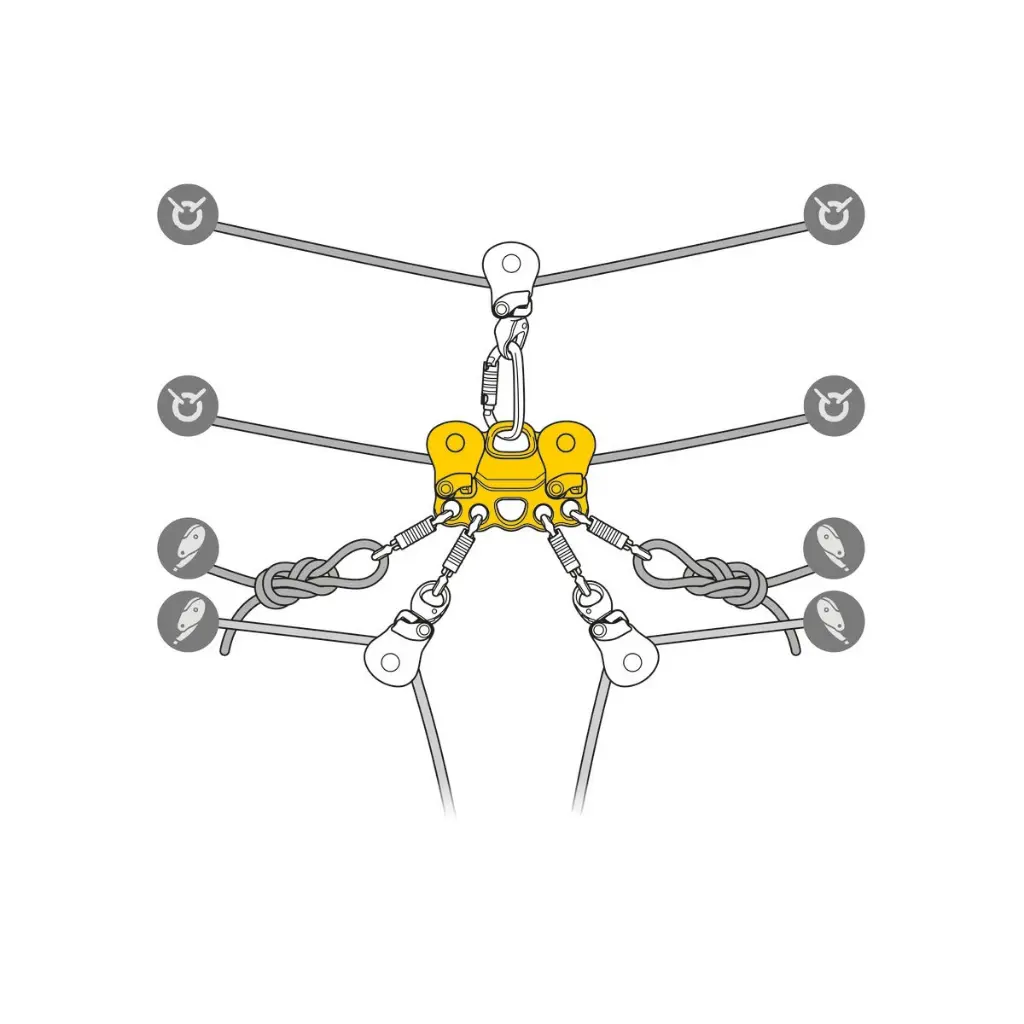

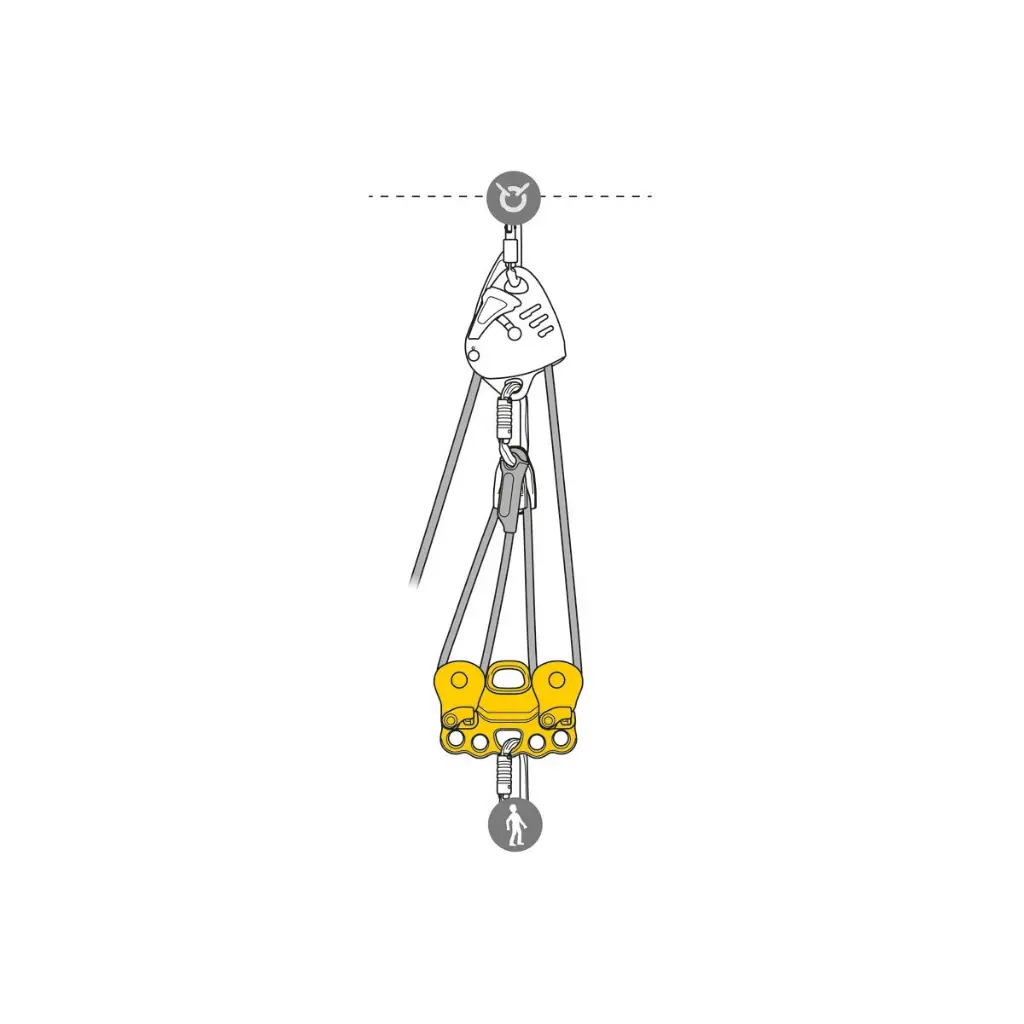

The compact integrated design is particularly suited for rescue highlines, Tyrolean traverses, complex hauling systems, and other technical rescue applications where system organization and efficient rope movement are critical.

Compatible Rope Diameter: 7–13 mm.

Ideal for USAR, technical rescue, highline rescue, rope rescue, confined-space rescue, industrial rescue, complex hauling systems, and work-at-height applications.

Sold individually.

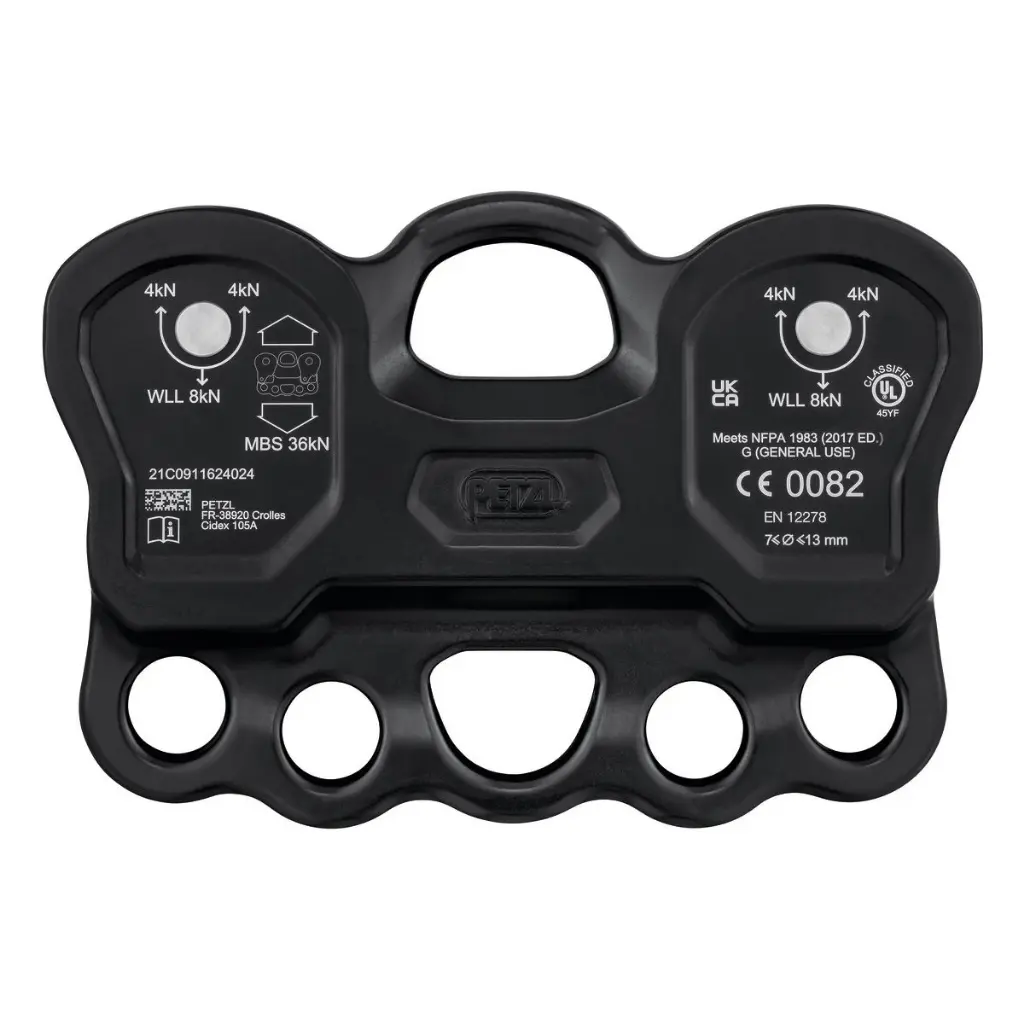

Standards: CE EN 12278, NFPA 2500 General Use, UKCA.
