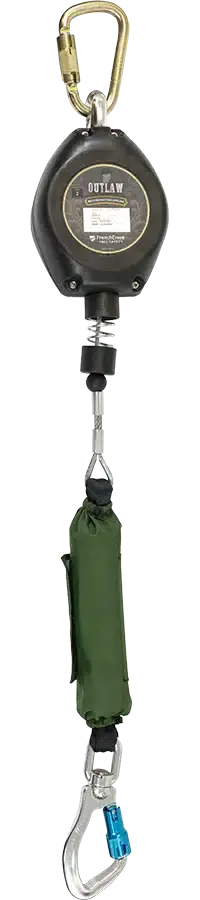

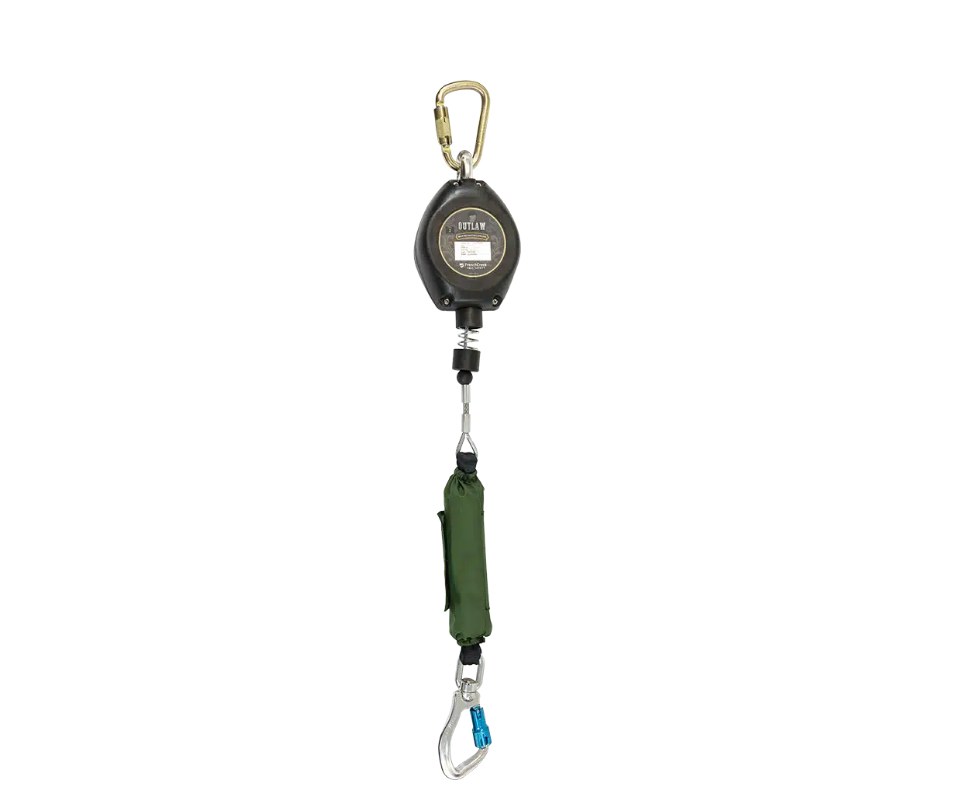

FrenchCreek XR-20LEG Outlaw 20 ft. Leading Edge Self-Retracting Lifeline – Class 2

The FrenchCreek XR-20LEG Outlaw Leading Edge Self-Retracting Lifeline is designed for fall-protection applications where workers may be exposed to leading-edge hazards. The Class 2 SRL combines a 20-foot galvanized steel cable lifeline with internal and external energy absorption to help manage fall-arrest forces.

The XR-20LEG features a thermoplastic housing with a swiveling anchor point to help reduce twisting during movement. A steel carabiner with a 1-inch gate opening provides the housing connection, while the lifeline terminates in a load-indicating, self-locking swivel snap hook with a 3/4-inch gate opening.

A leading-edge shock pack provides additional energy absorption for Class 2 applications, while an integrated visual impact indicator assists with inspection following a fall event. The unit incorporates aluminum, bronze, and stainless-steel internal components and is available through FrenchCreek’s Quick Ship program.

Features

• 20-foot leading-edge self-retracting lifeline

• High-strength galvanized steel cable

• ANSI Class 2 SRL

• Leading-edge shock pack

• Internal and external shock-absorption system

• Thermoplastic housing

• Swiveling anchor point

• #354-4 steel carabiner with 1-inch gate opening

• RL-28 load-indicating, self-locking swivel snap hook with 3/4-inch gate opening

• Visual impact indicator

• Quick Ship available

Specifications

Manufacturer: FrenchCreek Fall Safety

Model: XR-20LEG Outlaw

Manufacturer Part Number: XR-20LEG

Product Type: Leading Edge Self-Retracting Lifeline

SRL Class: Class 2

Lifeline Length: 20 ft.

Lifeline Material: Galvanized Wire Rope

Housing: Thermoplastic

Housing Connector: #354-4 Steel Carabiner

Housing Connector Gate Opening: 1 in.

Lifeline Connector: RL-28 Load-Indicating Self-Locking Swivel Snap Hook

Lifeline Connector Gate Opening: 3/4 in.

Shock Absorber: Internal and External Shock Absorption System

Anchor Point: Swiveling

Impact Indicator: Visual

ANSI User Capacity: 130–310 lb.

OSHA User Capacity: Up to 420 lb.

Item Weight: 10 lb.

Performance / Certifications
