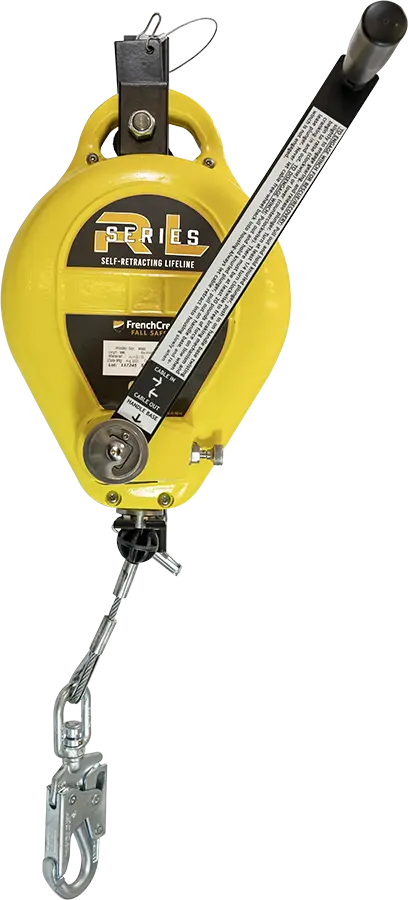

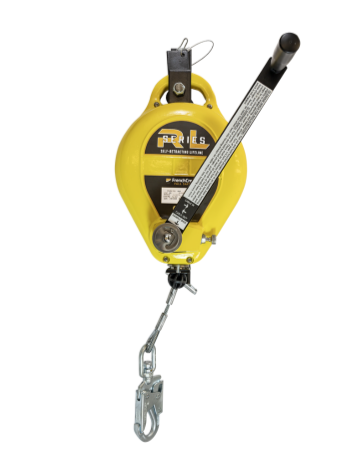

FrenchCreek R50G 50 ft. 3-Way Rescue SRL – Galvanized Steel Cable
The FrenchCreek R50G is a 3-way self-retracting lifeline designed for fall arrest, confined-space rescue, and worker retrieval. During normal operation, the unit functions as a self-retracting lifeline. If a worker falls, the braking system engages to arrest the fall, after which the unit can be activated into retrieval mode to raise or lower the worker to safety.
The R50G uses 50 feet of 3/16-inch galvanized steel wire rope housed in a rugged cast-aluminum housing. A dual internal inertia braking system provides fall-arrest functionality, while the retrieval mechanism incorporates a friction brake to prevent the crank handle from free-wheeling while under load.
The unit includes a load-indicating self-locking swivel snap hook, split pulley, carabiner, and mounting bracket for integration with compatible FrenchCreek tripod, davit, and Quad Pod systems.
Key Features
• 3-way self-retracting lifeline with rescue and retrieval capability
• 50 ft. of 3/16-in. galvanized steel wire rope
• Raise and lower retrieval mode
• Dual internal inertia braking system
• Friction brake prevents crank-handle free-wheeling under load
• Rugged cast-aluminum housing
• Load-indicating self-locking swivel snap hook
• Visual impact indicator
• Includes split pulley and carabiner
• Mounting bracket for compatible FrenchCreek systems
• Compatible with FrenchCreek tripod, davit, and Quad Pod systems
• Quick Ship item
Specifications
| Specification | R50G |
|---|---|
| Manufacturer | FrenchCreek Fall Safety |
| Model | R50G |
| Product Type | 3-Way Rescue Self-Retracting Lifeline |
| Lifeline Length | 50 ft. |
| Lifeline | 3/16-in. galvanized steel wire rope |
| Galvanized Lifeline Tensile Strength | 4,200 lb. |
| Housing | Cast aluminum |
| Brake Pawls | Bronze |
| Main Spring | Stainless steel |
| Fasteners | Stainless steel |
| Gear Ratio | 5.1:1 |
| ANSI Capacity | 130–310 lb. |
| OSHA Capacity | Up to 350 lb. |
| Maximum Fall Arrest | 900 lb. |
| Carabiner Minimum Tensile Strength | 5,000 lb. |
| Snap Hook Minimum Tensile Strength | 5,000 lb. |
| Carabiner Gate Strength | 3,600 lb. |
| Snap Hook Gate Strength | 3,600 lb. |
Standards and Compliance
| Standard | Manufacturer Listing |
|---|---|
| ANSI Z359.14-2021 | Yes |
| OSHA 1926.502 | Yes |
| OSHA 1910.66 | Yes |
