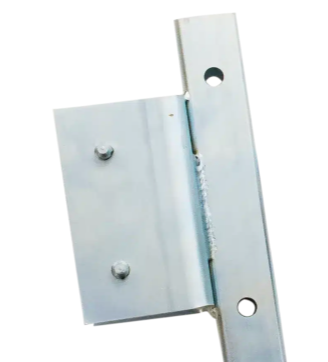

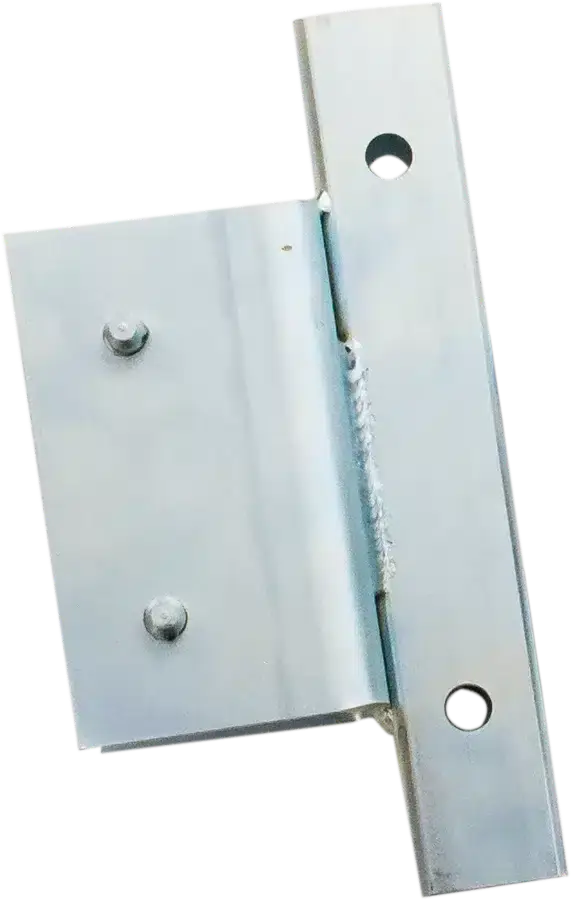

FrenchCreek PD4 Mounting Bracket for MW50G Work Winch
The FrenchCreek PD4 Mounting Bracket is designed specifically to attach the FrenchCreek MW50G Work Winch to the PD1 Davit Mast Assembly as part of the FrenchCreek Portable Davit System.
Constructed from zinc-plated alloy steel, the PD4 provides the mounting interface between the MW50G Work Winch and the PD1 davit mast. Locking pins allow straightforward installation and removal when configuring the davit system for confined-space entry, personnel raising and lowering, routine work, and rescue applications.
The PD4 is the required mounting bracket when pairing the FrenchCreek MW50G Work Winch with the PD1 Davit Mast Assembly.
Key Features
• Mounting bracket for FrenchCreek MW50G Work Winch
• Designed for FrenchCreek PD1 Davit Mast Assembly
• Locking-pin installation
• Zinc-plated alloy-steel construction

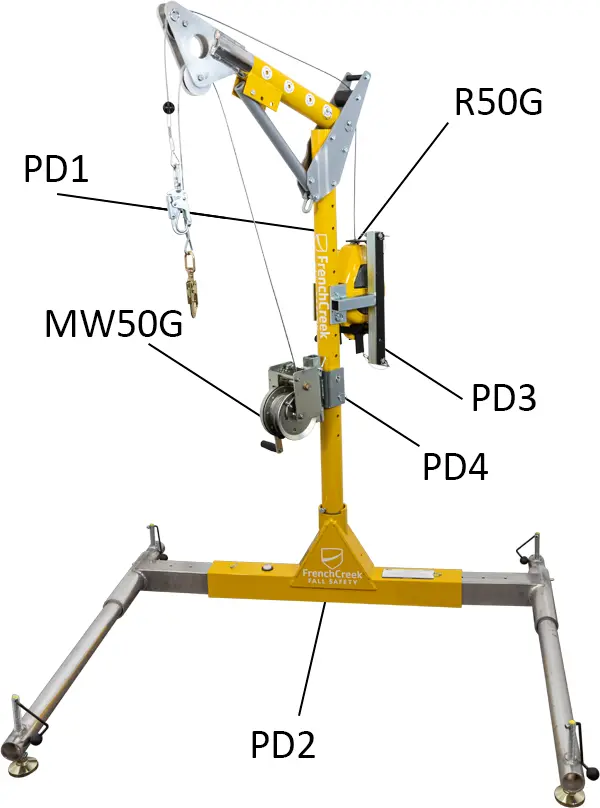

• Component of the FrenchCreek Portable Davit System
• Quick Ship item
Important: The PD4 is the mounting bracket only. The PD1 Davit Mast Assembly, MW50G Work Winch, davit base, rescue SRL, and other system components are sold separately unless specifically stated otherwise.
Specifications
| Specification | PD4 |
|---|---|
| Manufacturer | FrenchCreek Fall Safety |
| Model | PD4 |
| Product Type | Work winch mounting bracket |
| Compatible Mast | PD1 Davit Mast Assembly |
| Compatible Winch | MW50G Work Winch |
| Installation | Locking pins |
| Material | Zinc-plated alloy steel |
| Current Manufacturer-Listed Weight | 15 lb. |
| Availability | Quick Ship |
Standards and Compliance
| Standard | Manufacturer Listing |
|---|---|
| OSHA 1926.502 | Yes |
| OSHA 1910.66 | Yes |
