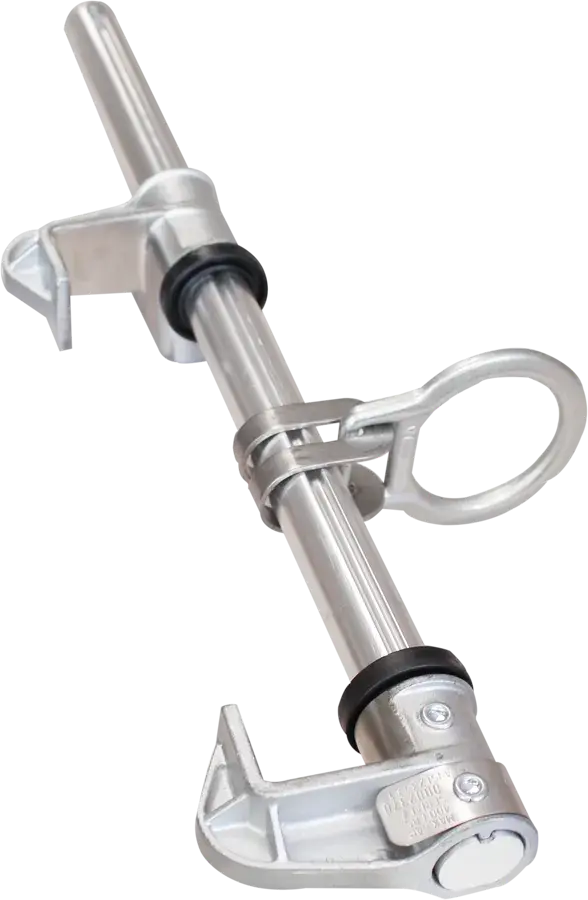

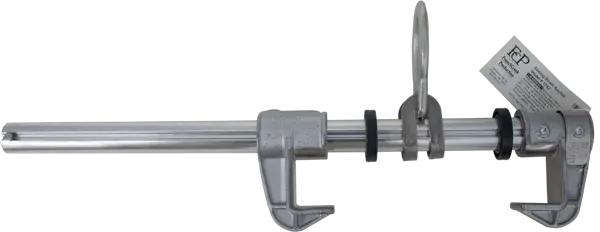

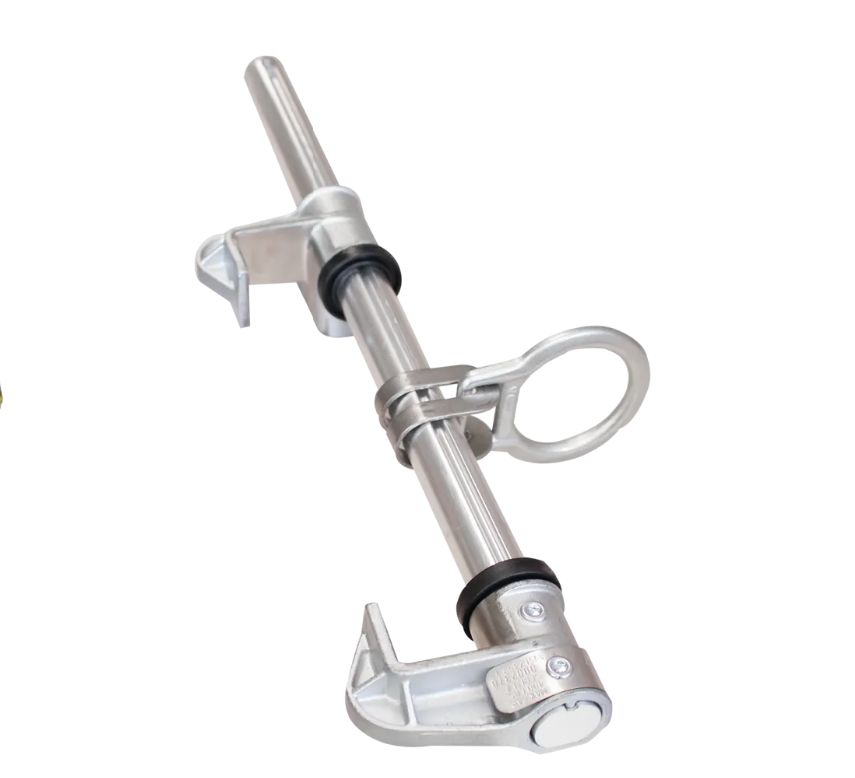

FrenchCreek 1702 Sliding Beam Anchor

The FrenchCreek 1702 Sliding Beam Anchor provides a portable anchorage connection for workers operating on structural steel I-beams. Its adjustable design accommodates a range of beam flange widths and allows the anchor to be installed on either the top or bottom of the beam.

The 1702 adjusts to fit I-beam flanges from 3½ to 14 inches wide and up to 1¼ inches thick. Installation requires no tools, allowing the anchor to be positioned and adjusted efficiently as work requirements change.

A floating D-ring provides the connection point for compatible personal fall-arrest equipment while allowing the anchorage to travel along the beam as the worker moves. The assembly is constructed from high-strength aluminum and zinc-plated alloy steel for professional fall-protection applications.

Features

• Portable sliding anchorage for structural steel I-beams

• Fits beam flanges from 3½ to 14 inches wide

• Accommodates flange thicknesses up to 1¼ inches

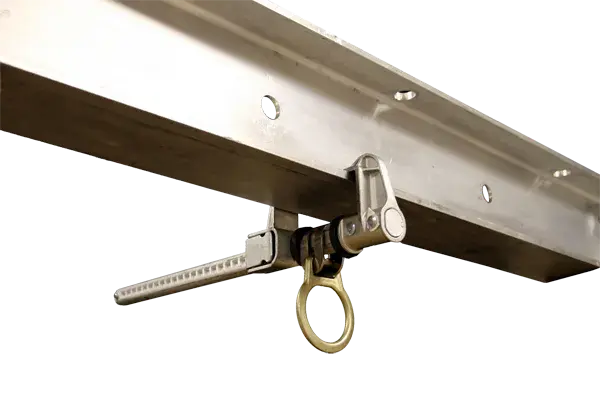

• Installs on the top or bottom of the beam

• Tool-free installation and adjustment

• Floating D-ring attachment point

• High-strength aluminum construction

• Zinc-plated alloy-steel components

• Designed for personal fall-arrest applications

Specifications

Manufacturer: FrenchCreek Fall Safety

Model: 1702

Manufacturer Part Number: 1702

Product Type: Sliding Beam Anchor

Beam Flange Width: 3½–14 in.

Maximum Flange Thickness: 1¼ in.

Installation Position: Top or bottom of beam

Connection Point: Floating D-ring

Materials: High-strength aluminum and zinc-plated alloy steel

ANSI User Capacity: 130–310 lb.

OSHA User Capacity: Up to 400 lb.

Performance / Certifications
