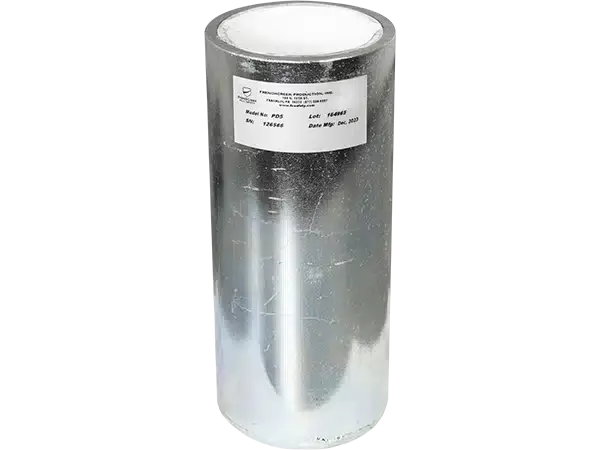

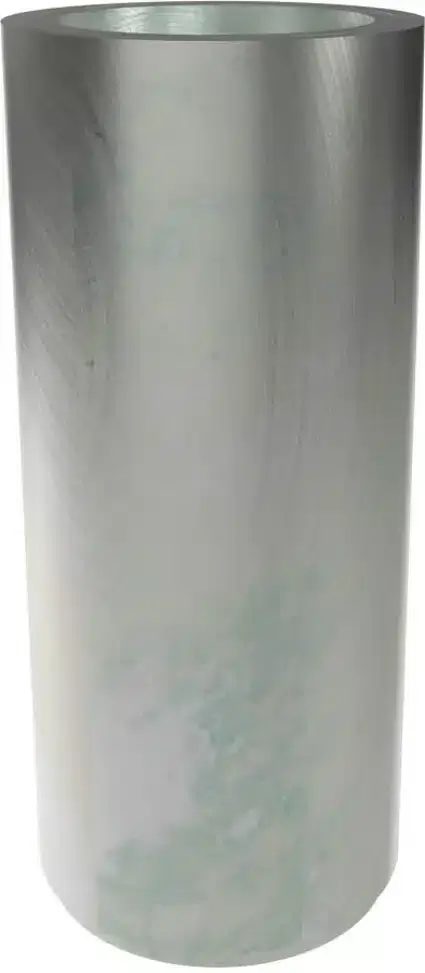

FrenchCreek PD5 Davit System Core Mount Sleeve Base

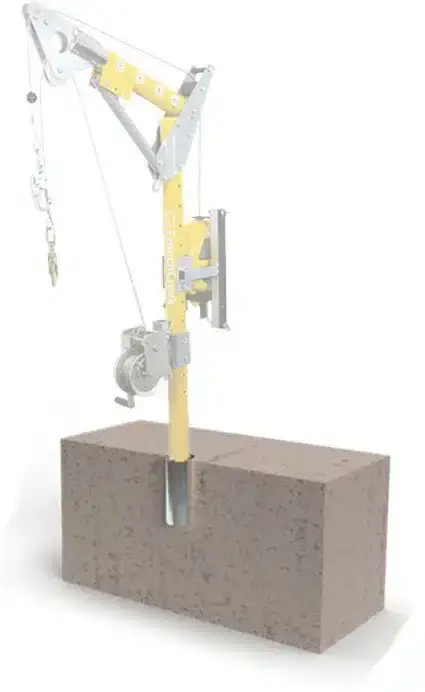

Core-mount sleeve base for FrenchCreek's portable davit system. It slips into a 4" diameter core hole in concrete or in an existing steel structure, which makes it well-suited to locations that are accessed repeatedly. Its 9" deep sleeve with PVC insert allows 360° mast rotation. It's compatible with the PD1 davit mast assembly and available for quick ship.

Specifications

• Type: Core-mount sleeve davit base
• Installation: Slip-in; fits a 4" (0.10 m) diameter core hole in concrete or an existing steel structure
• Sleeve: 9" deep with PVC insert; 3" inner diameter, 4" outer diameter
• Rotation: 360° mast rotation
• Compatible with: PD1 davit mast assembly
• Weight capacity: 450 lbs (205 kg) at a minimum 2:1 safety factor
• Material: Zinc-plated carbon steel, PVC pipe sleeve insert
• Weight: 9.7 lbs
• Availability: Quick Ship
• Standards: OSHA 1926.502 and 1910.66 when used in a complete system
