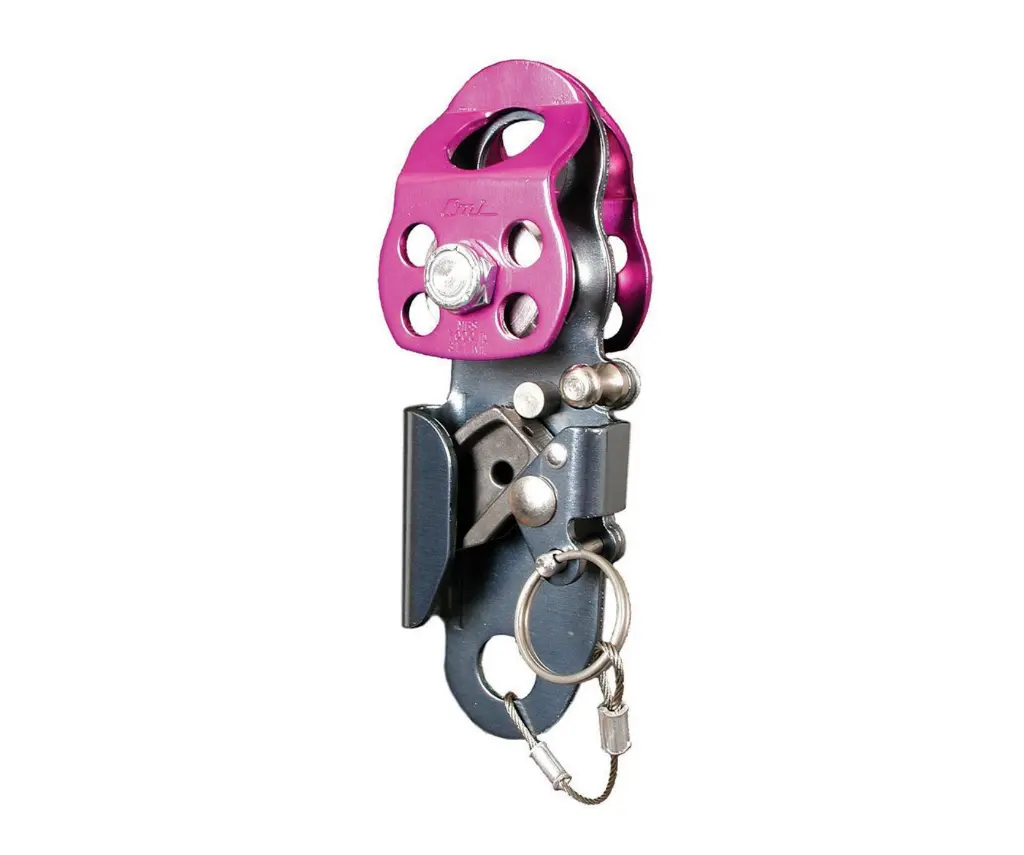

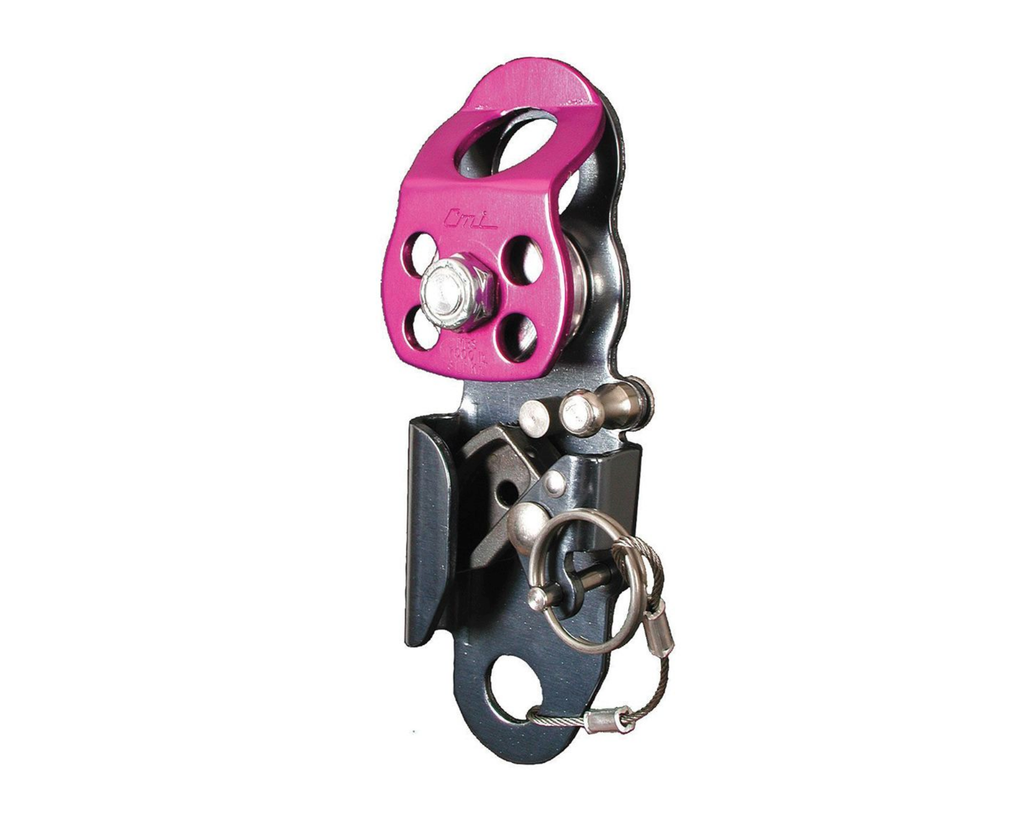

CMI Micro Hauler - Single or Double

The CMI Micro Hauler is a compact pulley designed for mechanical-advantage hauling systems, technical rescue, confined-space operations, rope rescue, and professional load-management applications. Its small profile allows rescuers and rope technicians to build efficient hauling systems where minimizing equipment size and weight is important.

Constructed with anodized aluminum side plates, a 1 1/4-inch aluminum sheave, durable bushing, and stainless steel axle, the Micro Hauler accommodates rope up to 1/2 inch in diameter. It is available in both single- and double-sheave configurations, allowing the user to select the appropriate pulley for the required mechanical-advantage system.

Features:

• Compact mechanical-advantage hauling pulley
• Anodized aluminum side plates
• 1 1/4-inch aluminum sheave
• Durable bushing
• Stainless steel axle
• Accommodates rope up to 1/2 in.
• Single- and double-sheave configurations available
• Single weight: 190 g
• Double weight: 235 g
• Designed for professional hauling and rope systems

Manufacturer: CMI

Product: Micro Hauler

Available Configurations: Single; Double

Maximum Rope Diameter: 1/2 in.

Product Type: Mechanical-Advantage Hauling Pulley
