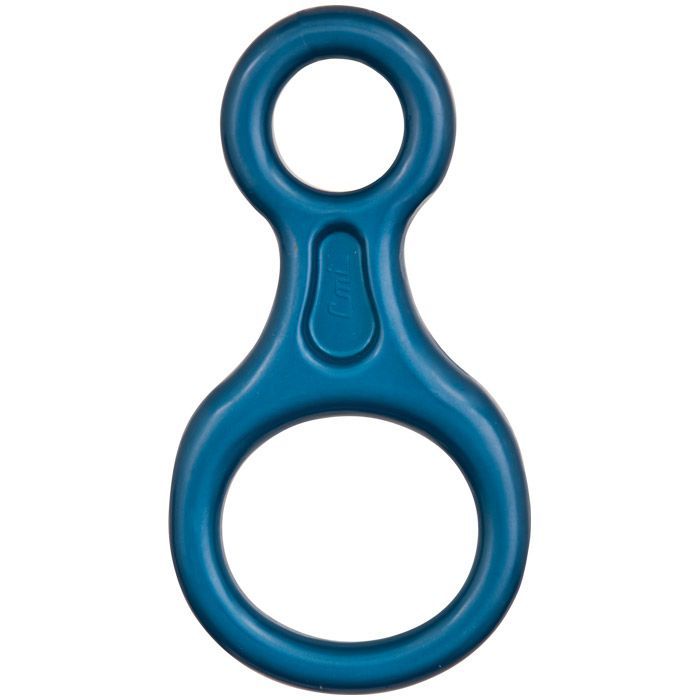

CMI Figure 8 Descender
The CMI Figure 8 Descender is a forged aluminum figure-eight device designed for rappelling, belaying, and controlled rope descent. CMI introduced its original forged aluminum Figure 8 design in 1974 and continues to manufacture the device from aircraft-grade aluminum alloy for strength, low weight, and effective rope friction.
Constructed from 6061-T6 aluminum alloy, the Figure 8 weighs 117 g (4.2 oz.) and provides a breaking strength exceeding 8,000 lb. The device measures approximately 5.5 inches long by 3 inches wide.
Vertex offers the CMI Figure 8 in two configurations. The Polished Silver version provides the traditional aluminum finish, while the Hard Coat Blue version incorporates CMI's hardcoat treatment for increased wear resistance and extended service life. CMI specifically identifies its hardcoat as a protective treatment intended to extend the working life of its aluminum descenders.
Manufacturer: CMI
Product: Figure 8 Descender
Material: 6061-T6 Aluminum Alloy
Device Type: Figure 8 Descender
Available Finishes: Polished Silver; Hard Coat Blue
Weight: 117 g / 4.2 oz.
Length: 13.5 cm / 5.5 in.
Width: 7.5 cm / 3 in.
Breaking Strength: 8,000+ lb.
Sale Unit: Each
Available Configurations
| Configuration | Finish | Manufacturer Model |
|---|---|---|
| Polished Silver | Non-hardcoated / Polished | R800FP |
| Hard Coat Blue | Hardcoat | R800 |
Performance Ratings and Specifications
| Performance | Rating |
|---|---|
| Breaking Strength | 8,000+ lb. |
| Material | 6061-T6 Aluminum Alloy |
| Weight | 117 g / 4.2 oz. |
-
Product Colors - Polished Silver
