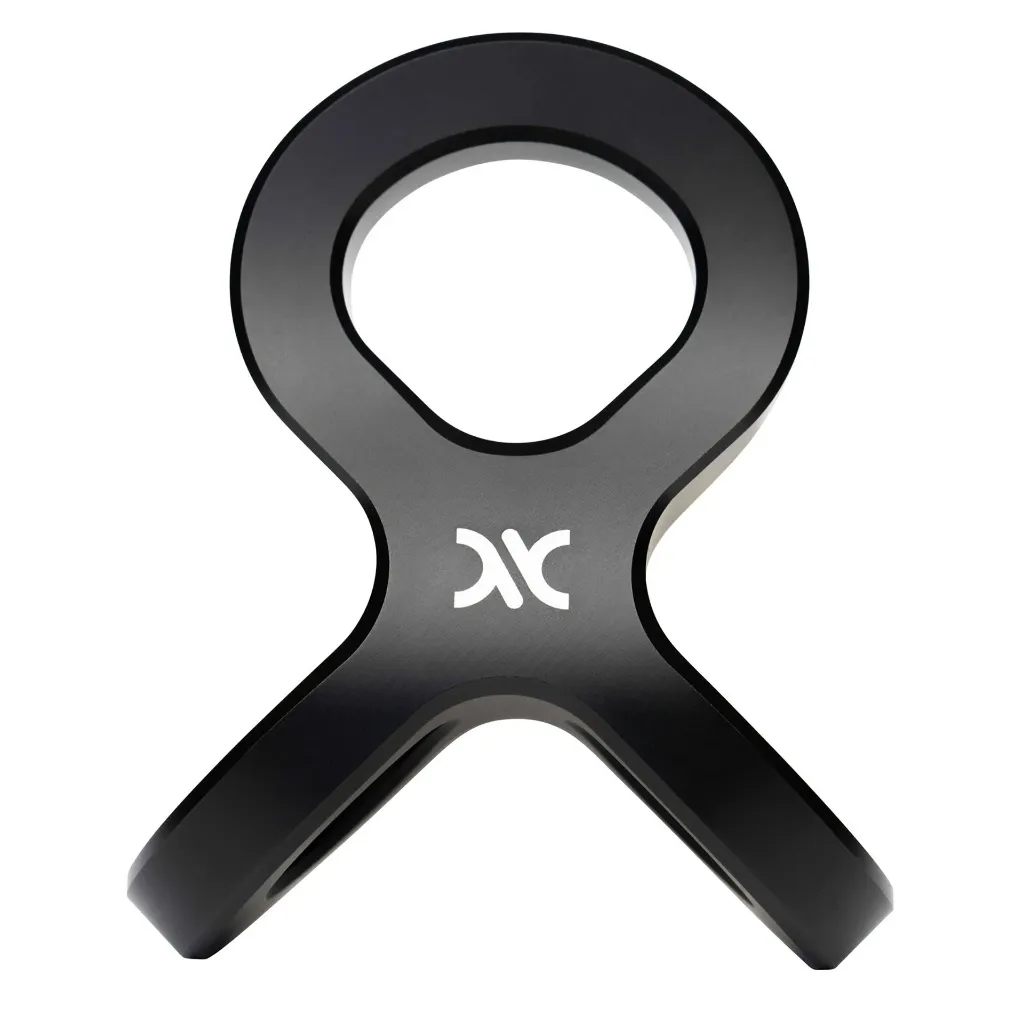

CMC SQUID Rig Plate

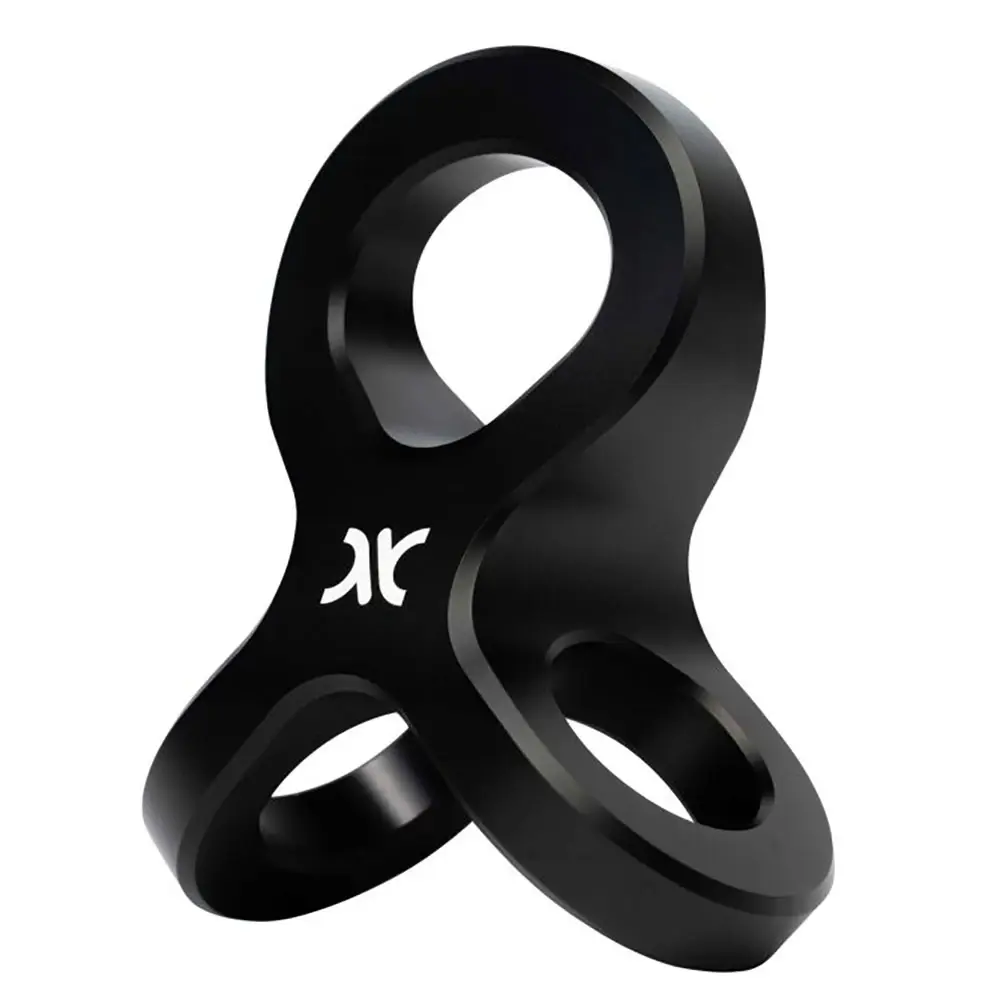

The CMC SQUID Rig Plate is a multi-planar rigging plate purpose-built for twin tension rope systems (TTRS), redundant rigging, and load-sharing applications. Unlike a conventional flat rigging plate, the SQUID uses perpendicular secondary attachment points to position multiple devices side by side while maintaining efficient alignment with the load. CMC Pro

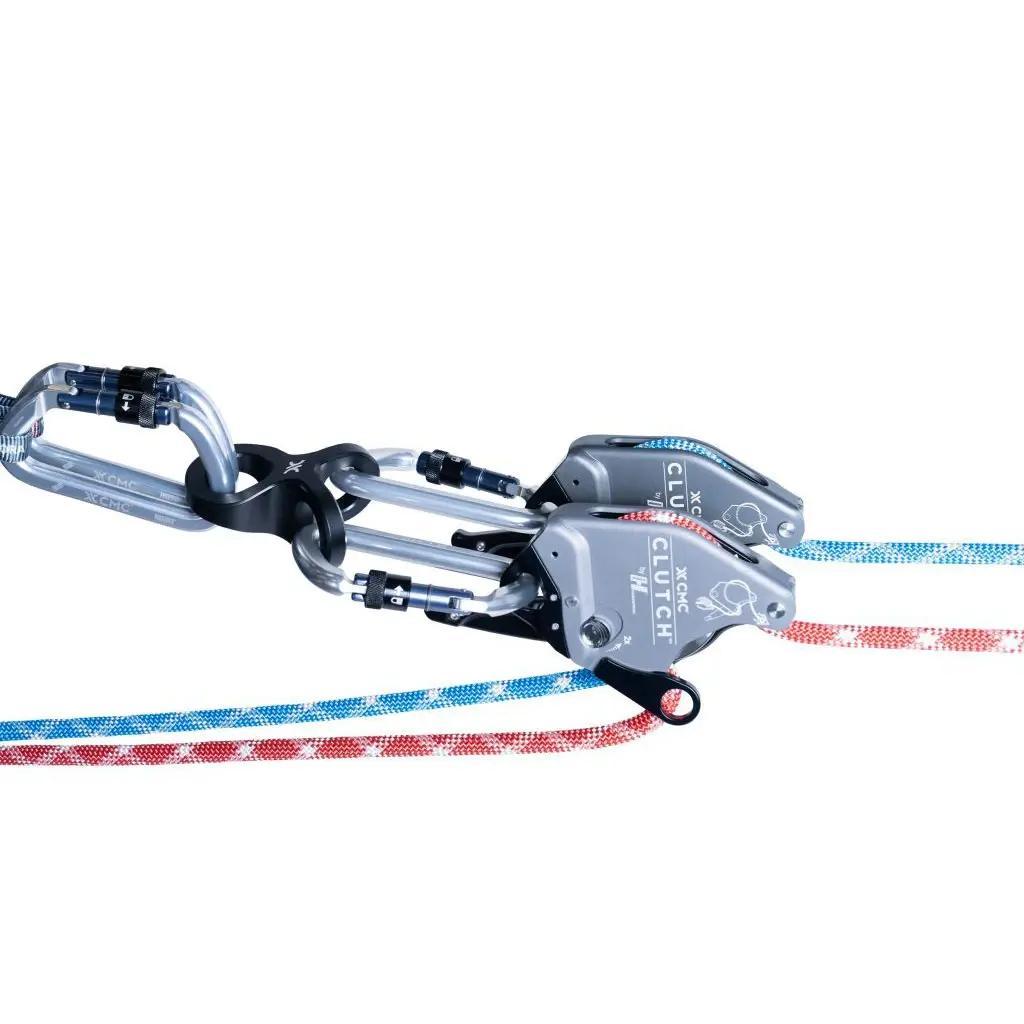

The configuration is particularly useful for mirrored and nested systems and for bringing two rope-control devices together for simultaneous operation. Its large primary collection point supports redundant anchoring, while the secondary points help separate and align connected hardware. The SQUID naturally orients toward the load, allowing connected components to move more freely and helping reduce binding and unwanted shifting within the system. CMC Pro

Features

• Multi-planar rigging plate with perpendicular attachment points
• Purpose-built for twin tension rope systems and load-sharing applications
• Optimizes side-by-side alignment of rope-control devices
• Supports simultaneous control of twin tension systems
• Large primary collection point for redundant anchoring
• Secondary attachment points provide hardware separation and alignment
• Allows connected components to orient toward the load
• Supports multiple connection methods and redundant rigging configurations
• Suitable for TTRS, litter bridals, cross hauls, and other technical rescue systems
• Aircraft-grade aluminum construction
• No moving parts
• Compact and lightweight
• Black finish CMC Pro

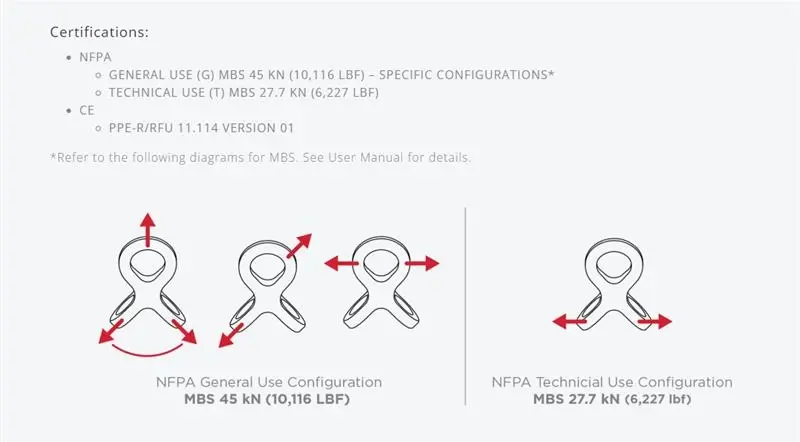

Specifications

Performance / Standards

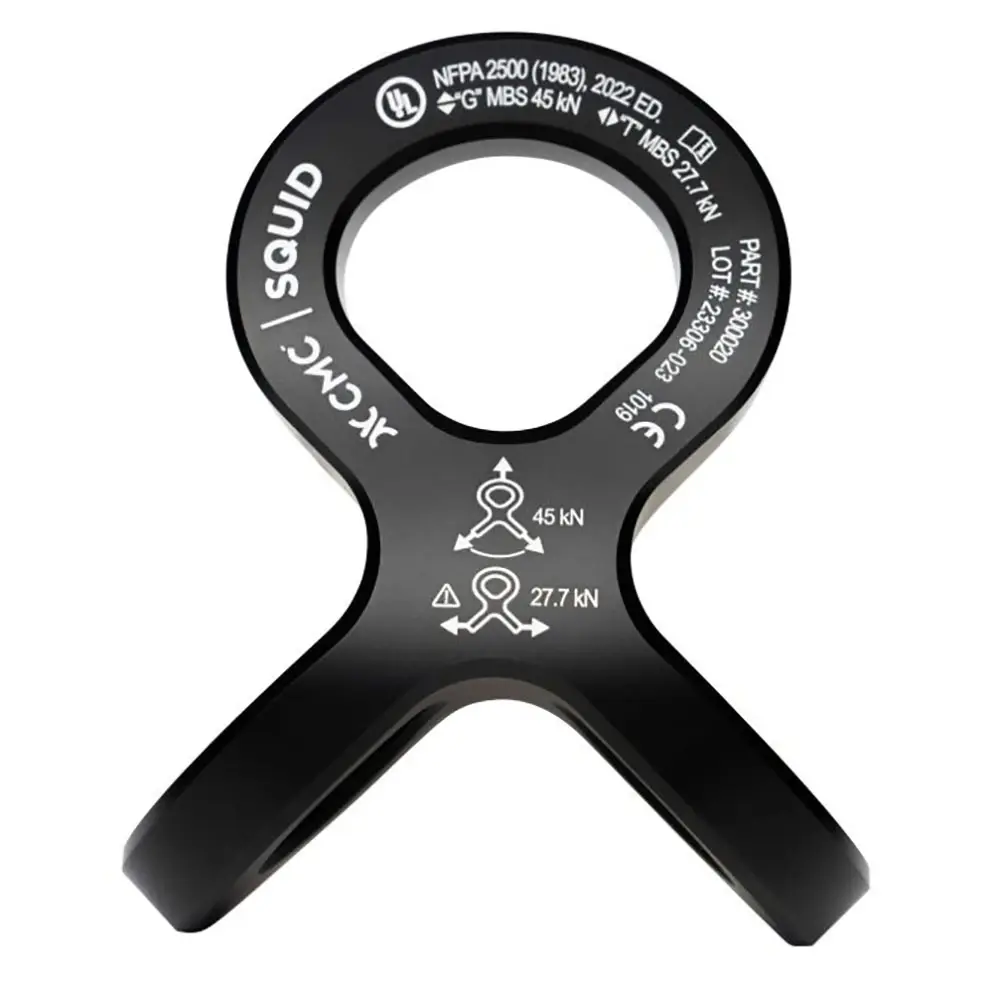

CMC states that the SQUID meets the auxiliary-equipment requirements of NFPA 1983 as incorporated into the 2022 edition of NFPA 2500.
