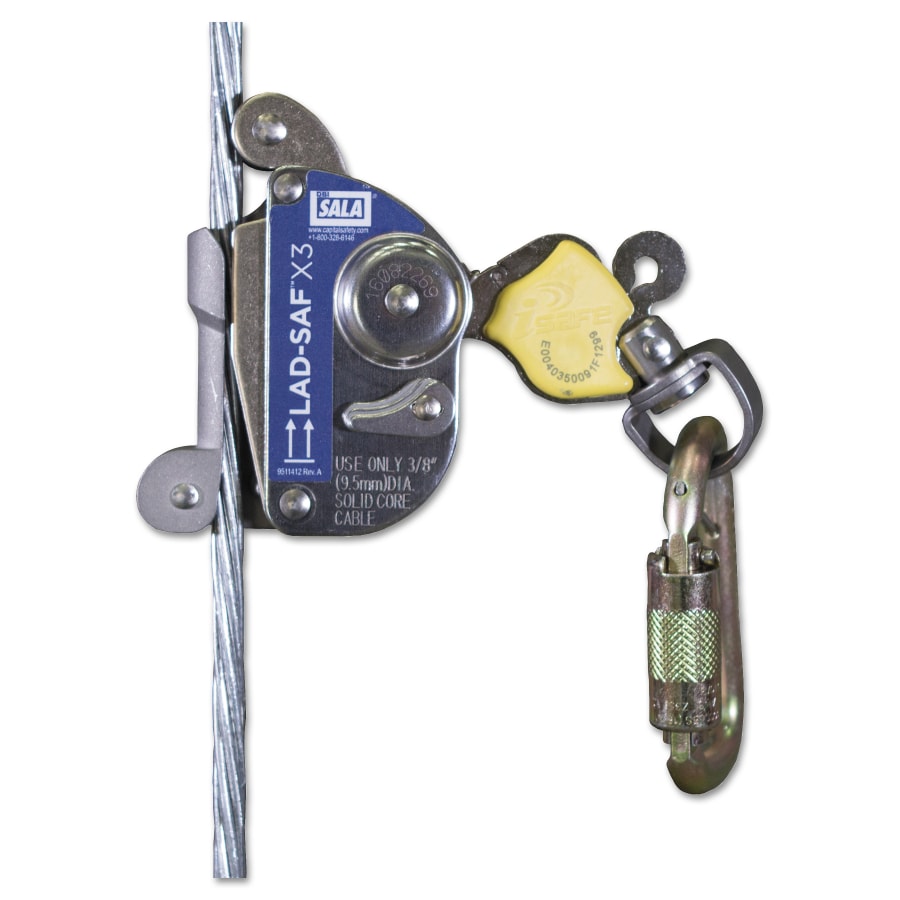

3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve, 3/8"

The 3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve provides hands-free fall protection for workers climbing fixed ladders equipped with compatible Lad-Saf vertical cable safety systems. The sleeve travels automatically with the worker during ascent and descent and locks onto the cable in the event of a fall, helping the worker regain footing while remaining connected to the system.

Designed specifically for 3/8-inch (9.5 mm) Lad-Saf vertical lifeline cable, the X3 can be installed or removed at any point along the lifeline. It is approved for use with compatible galvanized or stainless-steel 1x7 or 7x19 solid-core cable.

A dual-independent locking mechanism provides redundant fall-arrest functionality, while anti-inversion features help reduce the possibility of incorrect installation. The stainless-steel construction provides corrosion resistance for demanding outdoor and industrial environments.

The X3 incorporates a laser-cut stainless-steel energy absorber and visual fall indicator to assist with post-fall inspection. An integrated swivel improves mobility while climbing, and the included Saflok steel carabiner provides connection to the worker's harness. The sleeve is also equipped with 3M Connected Safety ID for digital identification and equipment-management applications.

Cable Compatibility: 3/8 in. (9.5 mm)

Compatible Cable Construction: 1x7 or 7x19 solid core

Compatible Cable Material: Galvanized or stainless steel

Maximum User Capacity: 310 lb. (141 kg), including clothing, tools, and equipment

Maximum Deployment Length: 4 in. (102 mm)

Minimum Breaking Strength: 3,600 lbf (16 kN)

Activation Force: 450 lbf (2.0 kN)

Construction: Stainless steel

Connector: Saflok steel carabiner

Locking System: Dual-independent locking mechanism

Fall Indicator: Integrated

Energy Absorber: Integrated stainless-steel energy absorber

Connected Safety ID: Equipped

Maximum Users per Sleeve: One

Manufacturer Part Number: 6160054

3M ID: 7100188819

Standards/Compliance: ANSI Z359.16; OSHA 1910.140; OSHA 1926.502

For industrial and occupational use by trained personnel. Designed for use only with compatible 3M DBI-SALA Lad-Saf vertical cable safety systems.
