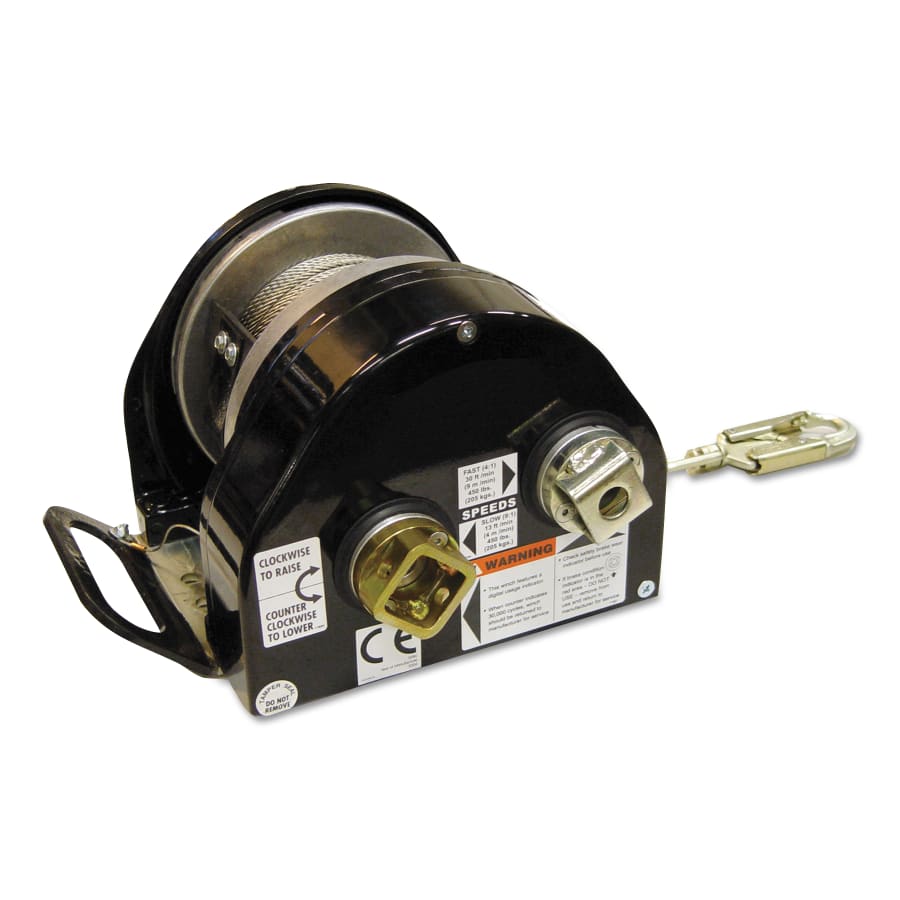

3M DBI-SALA Advanced Digital 200 Series Power Drive Winch, 140' Stainless Steel Cable

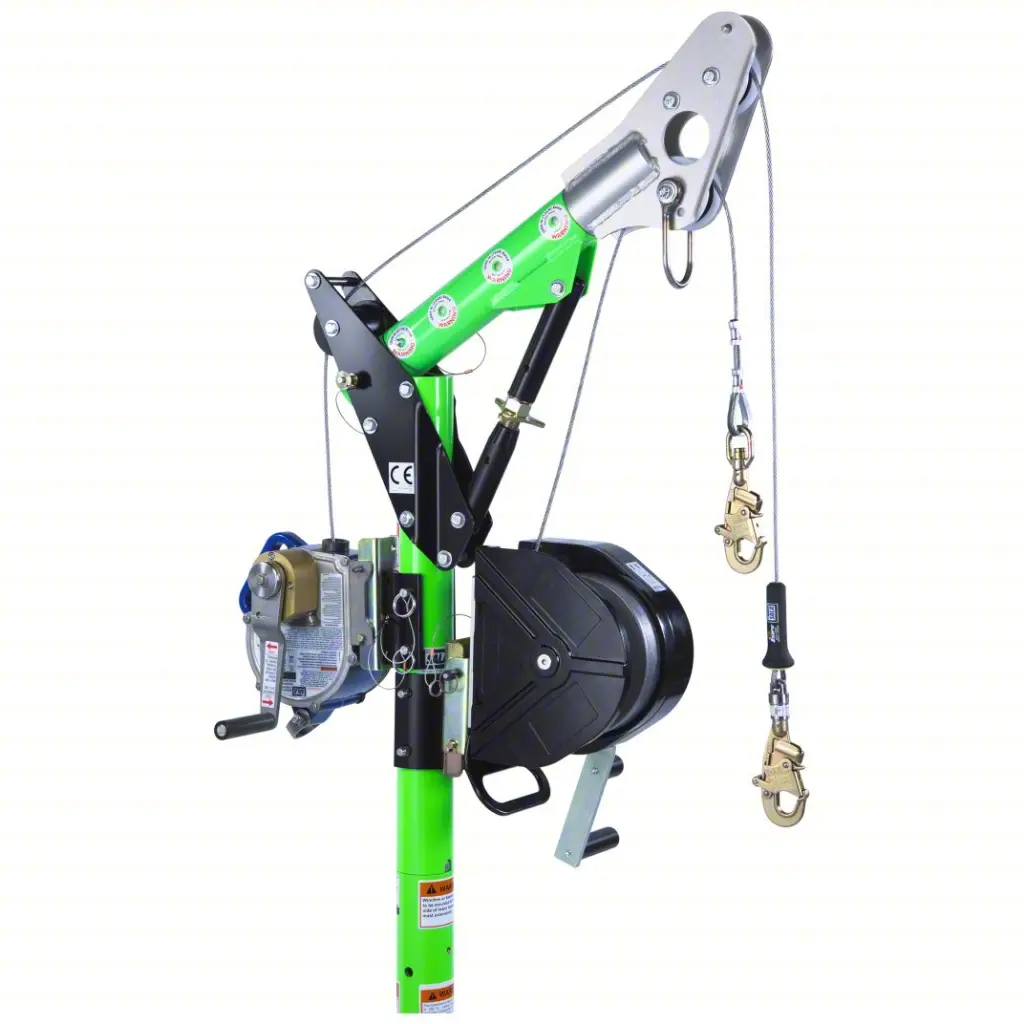

The 3M DBI-SALA Advanced Digital 200 Series Winch is a heavy-duty confined-space retrieval and material-handling system designed for demanding rescue, entry, and work-at-height applications. Rated for both personnel and material lifting, the winch is compatible with 3M DBI-SALA tripods, davits, horizontal-entry arms, and pole-hoist systems.

This Power Drive configuration features 140 feet of 3/16-inch stainless-steel wire rope and can be operated manually or with a compatible powered drive system. Dual 4:1 and 9:1 gear ratios allow the operator to select the mechanical advantage appropriate for the retrieval operation.

A built-in digital usage indicator tracks operating cycles to assist with inspection and maintenance. The winch also incorporates a triple-redundant braking system, brake-wear indicator, sealed bearings at contact points, and a swiveling snap hook with impact indicator. Durable corrosion-resistant construction is designed for repeated use in demanding industrial and emergency-response environments.

An integrated quick-mount bracket allows attachment to compatible DBI-SALA confined-space systems without requiring a separate mounting bracket. The integral carrying handle assists with transport and deployment. An overload-protection clutch is required for powered operation and is sold separately.

Winch Type: Advanced Digital 200 Series

Operation: Manual or Power Drive

Lifeline Length: 140 ft. (42 m)

Lifeline Diameter: 3/16 in. (5 mm)

Lifeline Material: Stainless steel wire rope

Maximum Capacity: 450 lb. (204 kg)

Mechanical Advantage: 4:1 and 9:1 gear ratios

Braking: Triple-redundant braking system

Brake Wear Indicator: Yes

Digital Usage/Cycle Indicator: Yes

Hook: Swiveling snap hook with impact indicator

Bearings: Sealed at contact points

Mounting Bracket: Integrated quick-mount bracket

Compatible Equipment: DBI-SALA davits, tripods, horizontal-entry arms, and pole hoists

Overload Protection Clutch: Required for powered operation; sold separately

Country of Origin: USA

Manufacturer Part Number: 8518586

3M ID: 7100204345

Standards/Compliance: OSHA 1910.66; OSHA 1926.502

For industrial and occupational use by trained personnel.
